Trek Checkpoint+ SL 5 Electric Road Bike - 2026

$6,999.99
Minus Plus

Please note: This is an oversized product and is excluded from our free shipping policy. Shipping charges will be added after the initial transaction. For a shipping quote prior to transaction please call 780.539.6262

"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer."

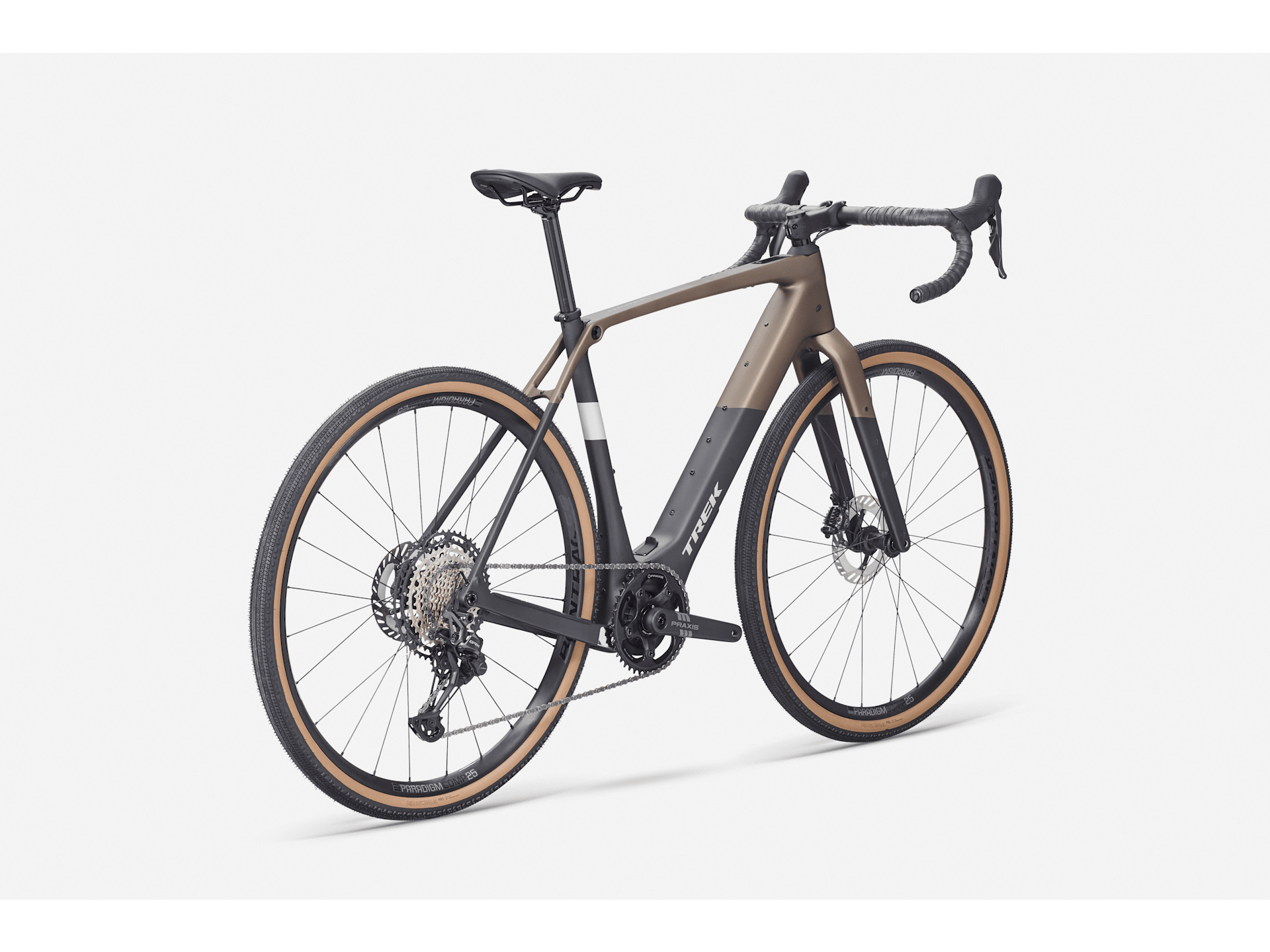

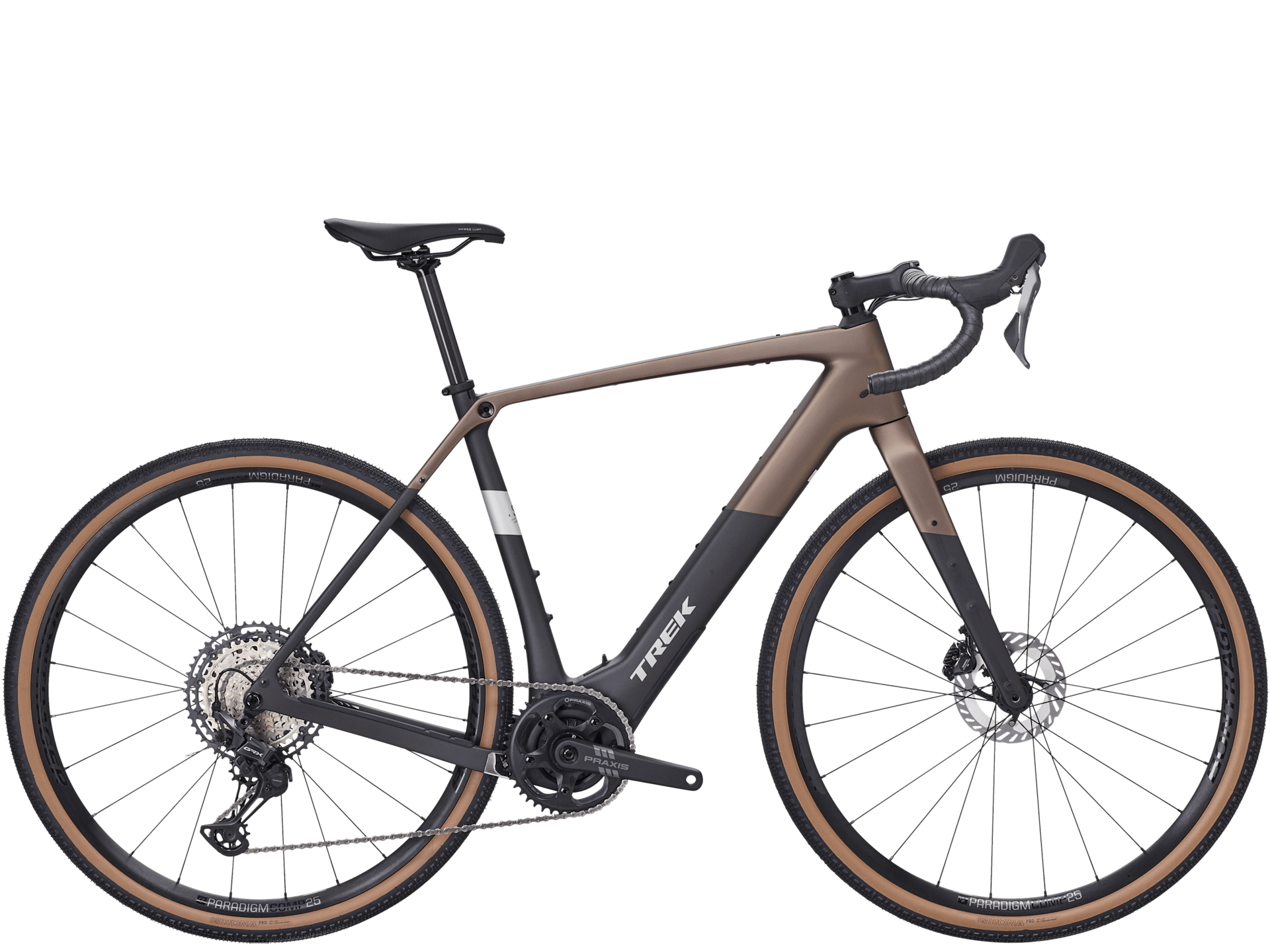

Checkpoint+ SL 5 is an electric gravel bike built to go the distance (and then some). You get a TQ HPR60 motor with a smooth and quiet boost and a 360Wh battery that keeps going on your biggest rides. Plus, it comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul.

  • Frame: 500 Series OCLV Carbon with IsoSpeed, internal routing, TQ drive system, flat mount disc, fender mounts, UDH, 142x12mm thru axle

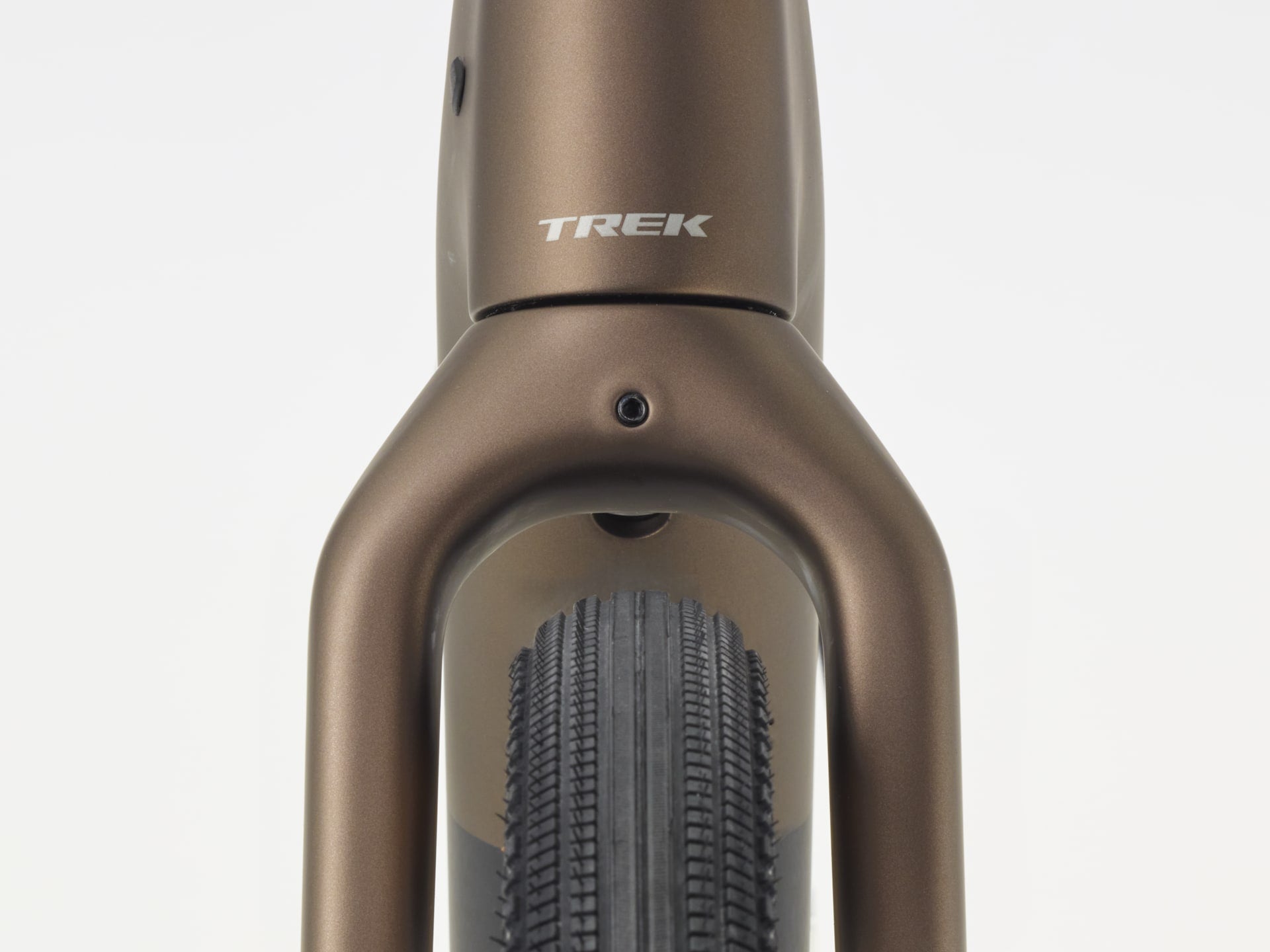

  • Fork: Checkpoint full carbon fork with tapered steerer, triple rack mounts, fender mounts, flat mount disc

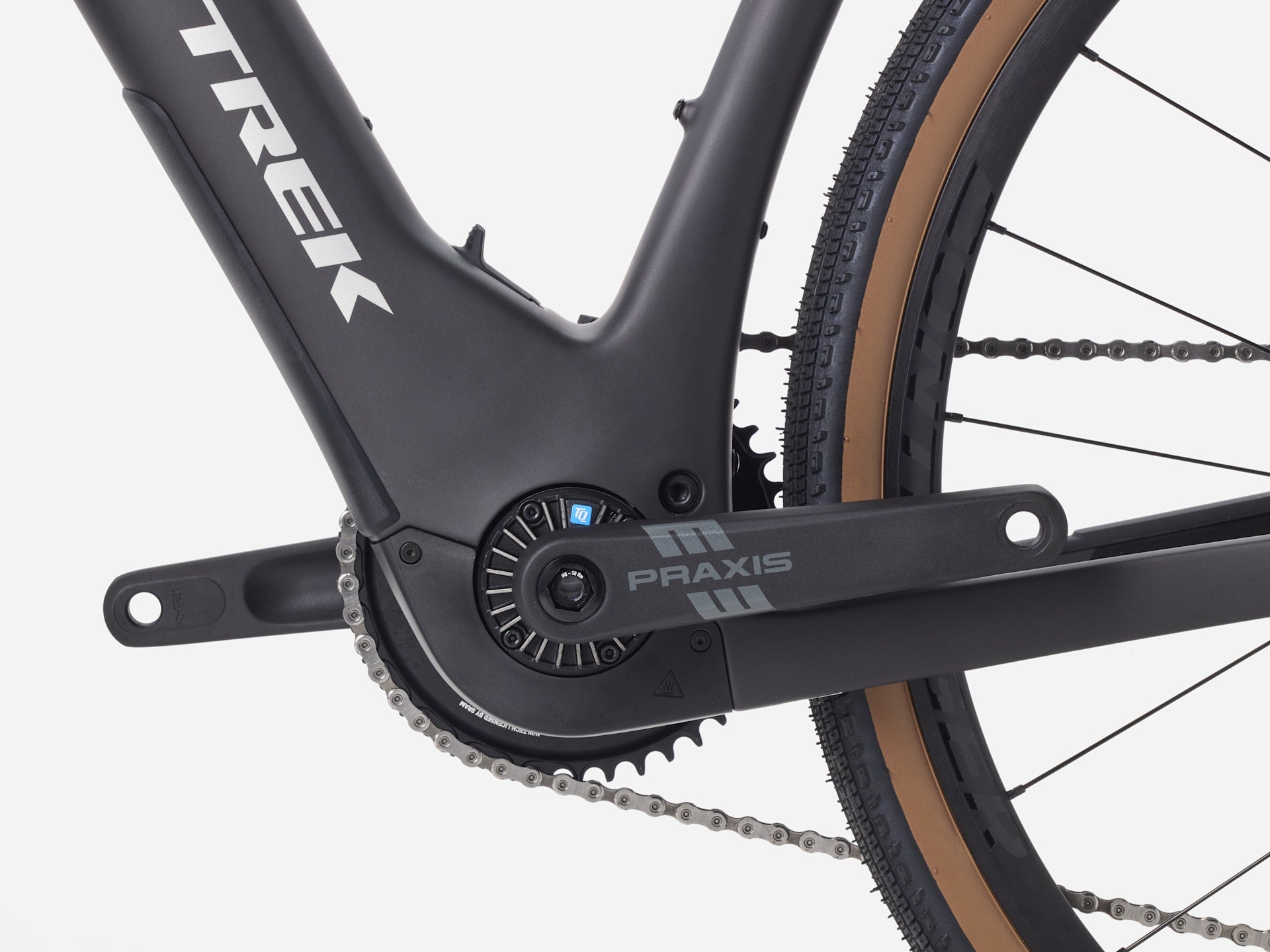

  • Motor: TQ-HPR60 (250W, 60Nm torque, 350W peak)

  • Battery: TQ 360Wh integrated battery

  • Display: TQ LED display with Bluetooth & ANT+

  • Charger: TQ 4A fast charger

  • E-Bike Class: Class 1 pedal assist

  • Shifter: Shimano GRX RX820, 12-speed

  • Rear Derailleur: Shimano GRX RX822 (51T max cog)

  • Crankset: Praxis Alloy (size-specific lengths)

  • Cassette: Shimano XT M8100, 10-51T, 12-speed

  • Chain: Shimano XT M8100, 12-speed

  • Wheels: Bontrager Paradigm Comp 25, Tubeless Ready (25mm rim width)

  • Front Hub: 12x100mm thru axle

  • Rear Hub: Shimano Micro Spline, 12x142mm thru axle

  • Tires: Bontrager Girona Pro, 700 x 42mm (Tubeless Ready)

  • Tubeless Setup: Includes Bontrager TLR sealant & rim strips

  • Max Tire Clearance: 50mm (42mm with fenders)

  • Brakes: Shimano GRX hydraulic disc

  • Rotors: Shimano CL800, 160mm

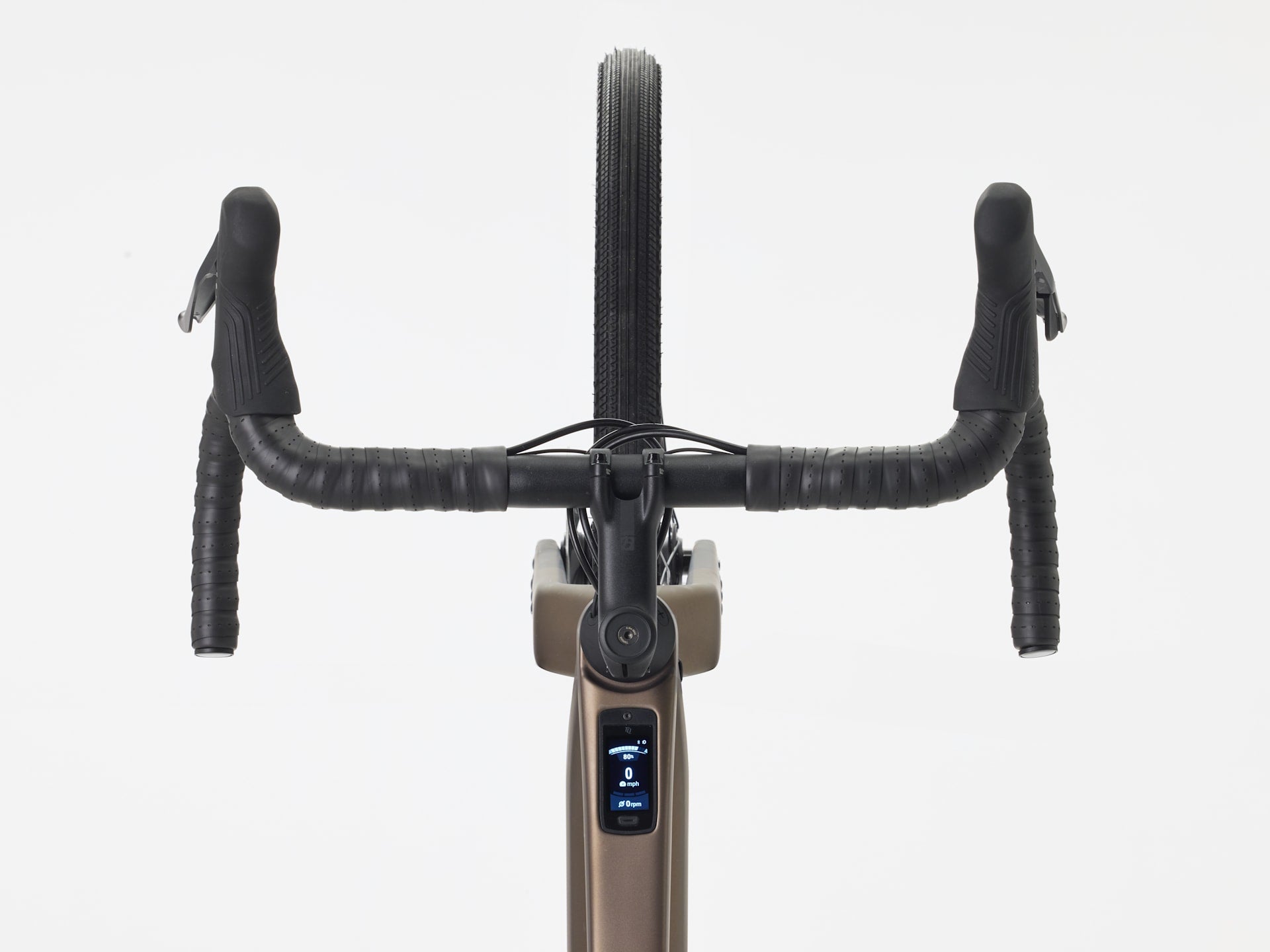

  • Handlebar: Bontrager Elite Gravel alloy (size-specific widths)

  • Stem: Bontrager Elite, Blendr compatible (size-specific lengths)

  • Bar Tape: Bontrager Supertack Perf

  • Seatpost: Bontrager carbon, 27.2mm

  • Saddle: Verse Short Comp, 145mm

  • Weight: 13.81 kg / 30.45 lbs (size ML, tubeless setup)

  • Max Weight Limit: 275 lbs / 125 kg (rider + bike + cargo)
