TREK

Trek Marlin+ 6

Sale
$3,239.99 $3,599.99
Minus Plus

Please note: This is an oversized product and is excluded from our free shipping policy. Shipping charges will be added after the initial transaction. For a shipping quote prior to transaction please call 780.539.6262

Plug in and get hooked

Soar up trails, through town, and everywhere in between with the ultimate do-anything e-MTB. Marlin+ is an electric hardtail that gives you all the versatility you crave and adds in a simple boost for flattening climbs and cruising with ease. You get features that matter most, like a Bosch drive unit and a confident and capable bike frame – without the hefty price tag. Are you ready to get hooked?

  • 29"(XS & S: 27.5")Wheel size
  • 120mmFront suspension
  • BoschMotor
  • 50NmTorque
  • 400WhBattery size

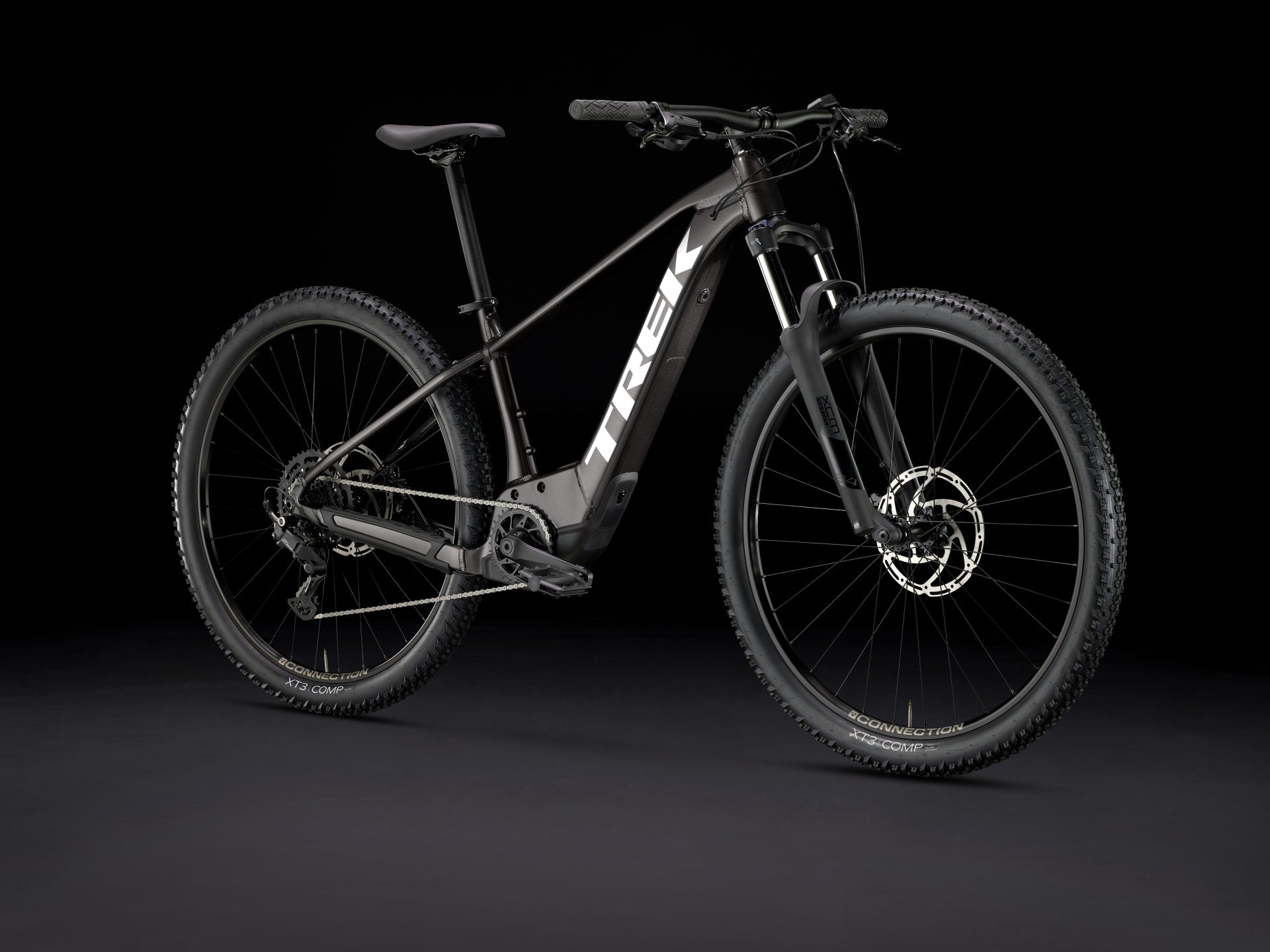

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

*Frame
Size: XS
Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Size: M , L , S , XL
Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
*Fork
Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
Size: M , L , S , XL
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Hub front
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Hub rear
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Skewer rear
Bontrager Switch thru axle, removable lever
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
*Tire
Size: XS , S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''
Size: M , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''
Max tire size
Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

Battery
Bosch CompactTube 400Wh

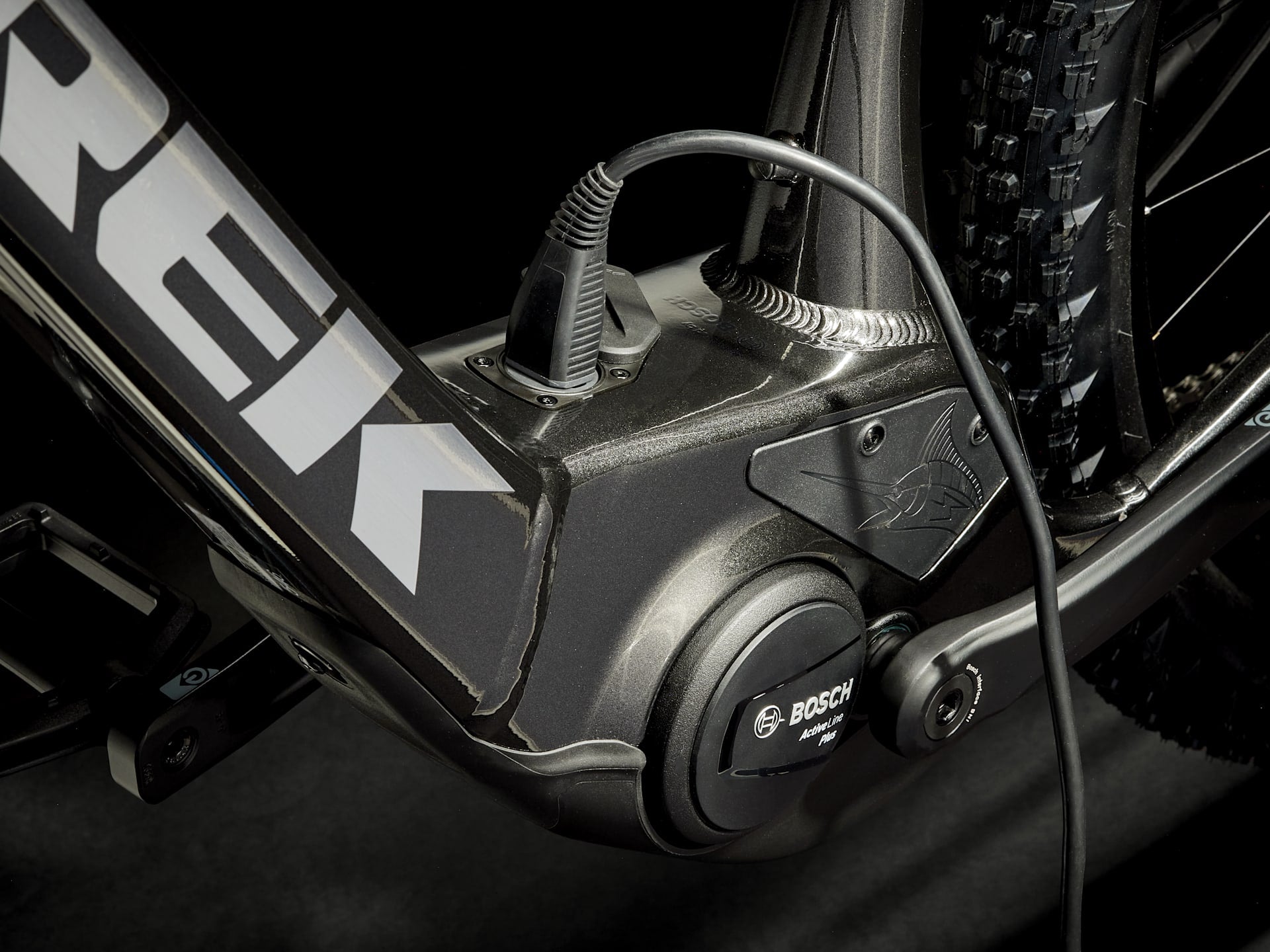

Charger
Bosch standard 2A, 110V, smart system

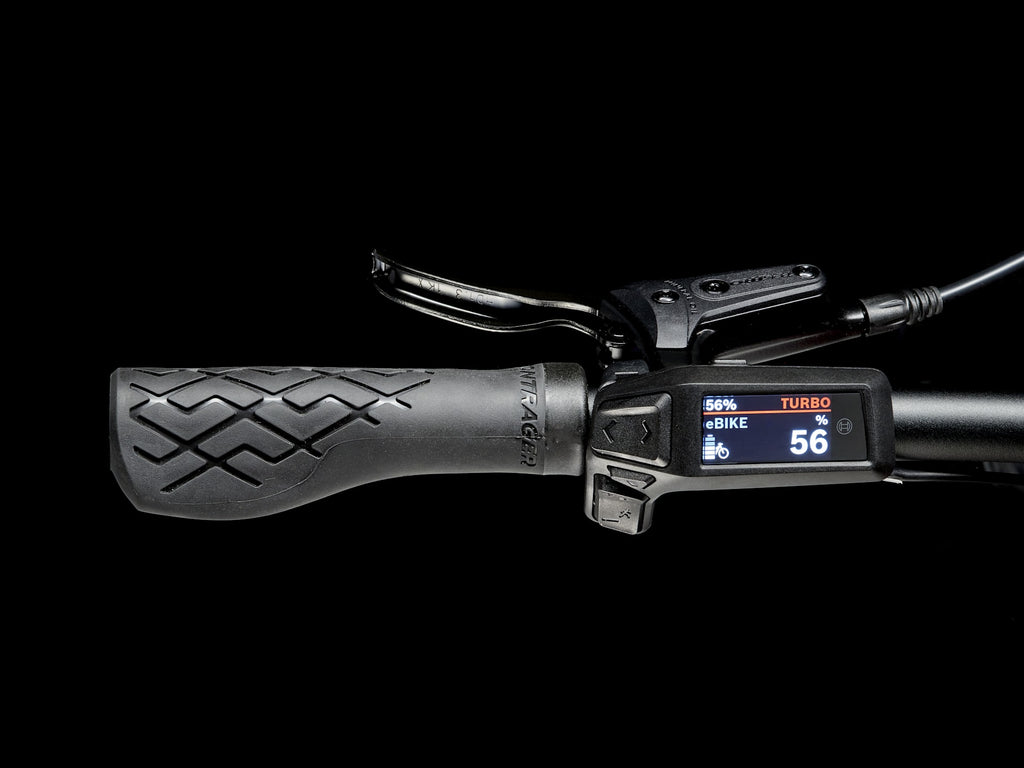

Computer
Bosch Purion 200

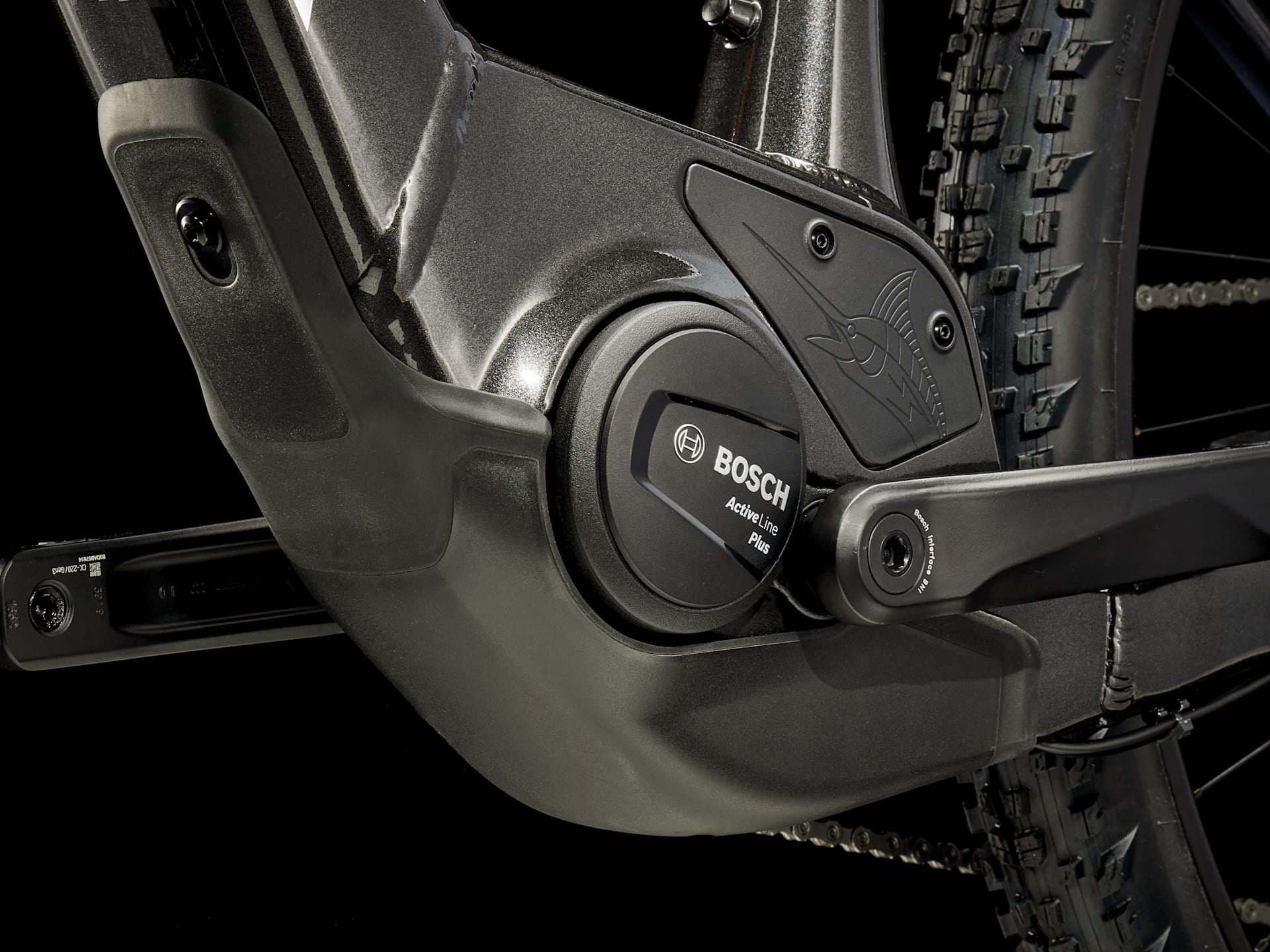

Motor
Bosch Active Line Plus, 50 Nm

Shifter
Shimano U4000, 9 speed

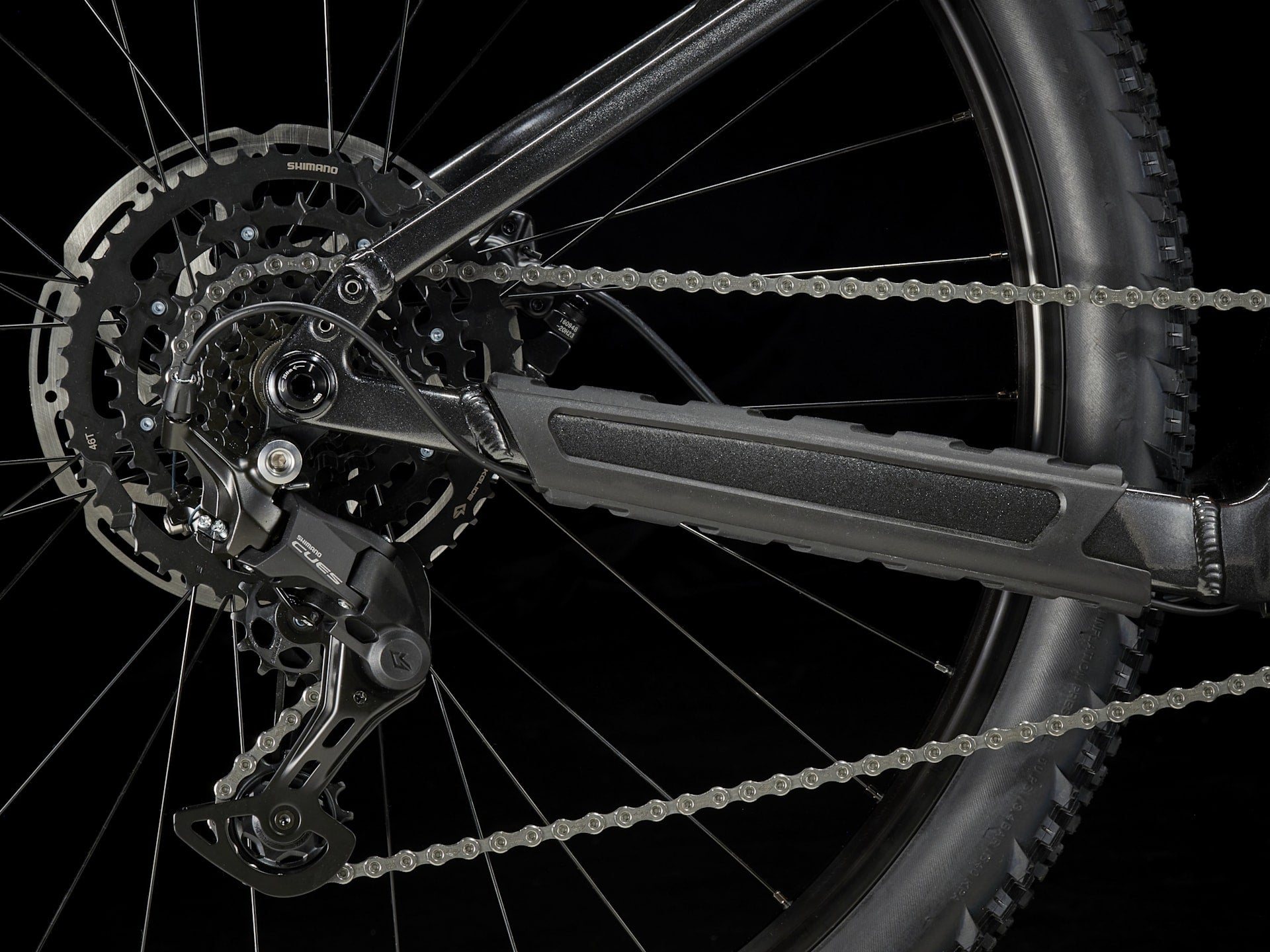

Rear derailleur
Shimano CUES U4000
Crank
FSA CK-220, 165mm length
Chain ring
FSA, 32T, steel
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain
Shimano LG500
Pedal
VP-536 nylon platform
Max chainring size
1x: 36T, min 32T

Saddle
Bontrager Verse P3, steel rails
*Seatpost
Size: XS , S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager alloy, 31.6mm, 12mm offset, 360mm length
Size: L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar
Size: XS , S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Endurance Comp, lock-on
*Stem
Size: XS
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , L , S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Brake rotor
Tektro, centerlock, 203mm
Brake Set
Tektro HD-M275 hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Weight
M - 22.45 kg / 49.5 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
