"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer."
Show them everything you love about riding.
Progressive frame design for a premium, next-level Trail ride.
-
Holistic design for uncompromised Trail performance.
-
Premium Double Butted aluminum frame
-
Performance and ride potential built-in.
-
27.5” Wheels roll smooth and light.
-

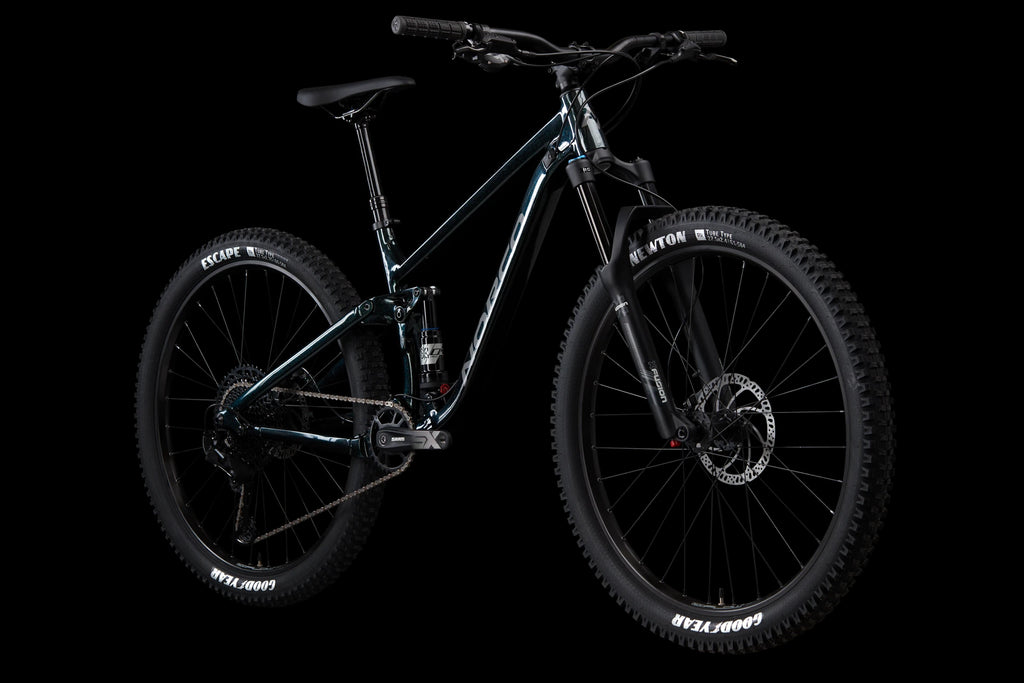

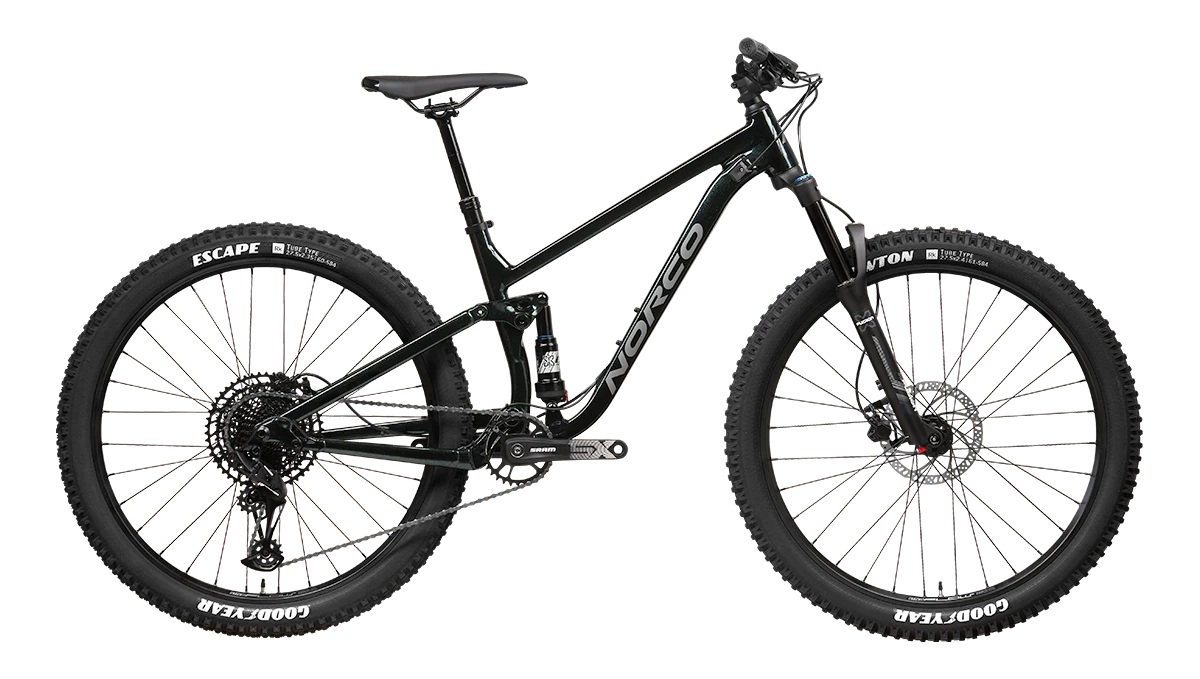

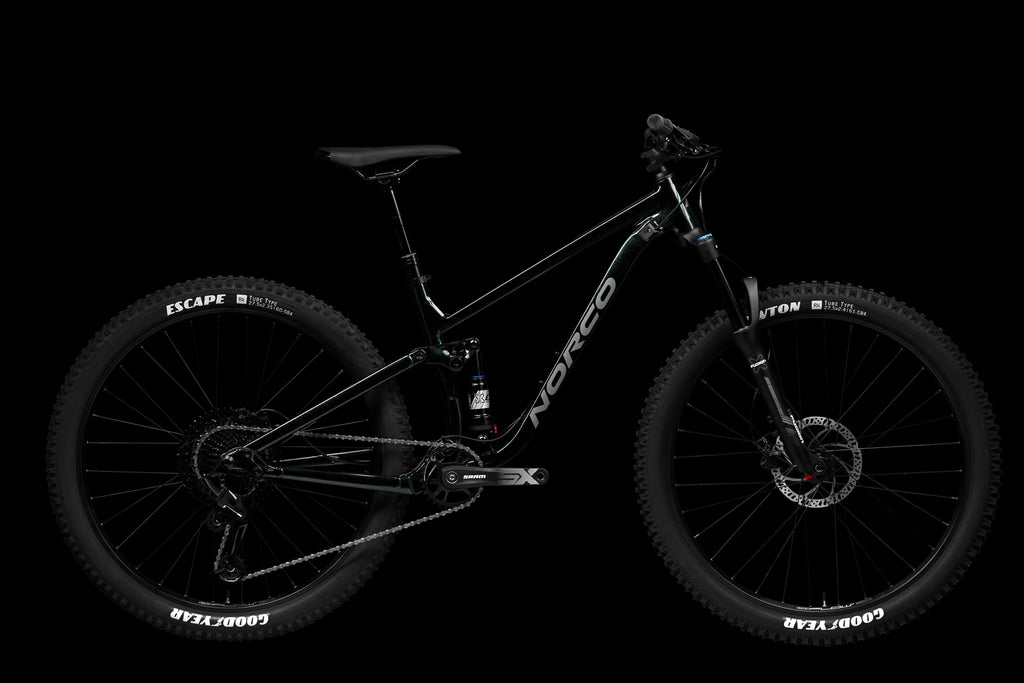

The Fluid FS 27.5” has evolved fit, handling and suspension design to elevate small riders’ trail experience.
| Frame | 6061 Aluminum, 120mm Travel |

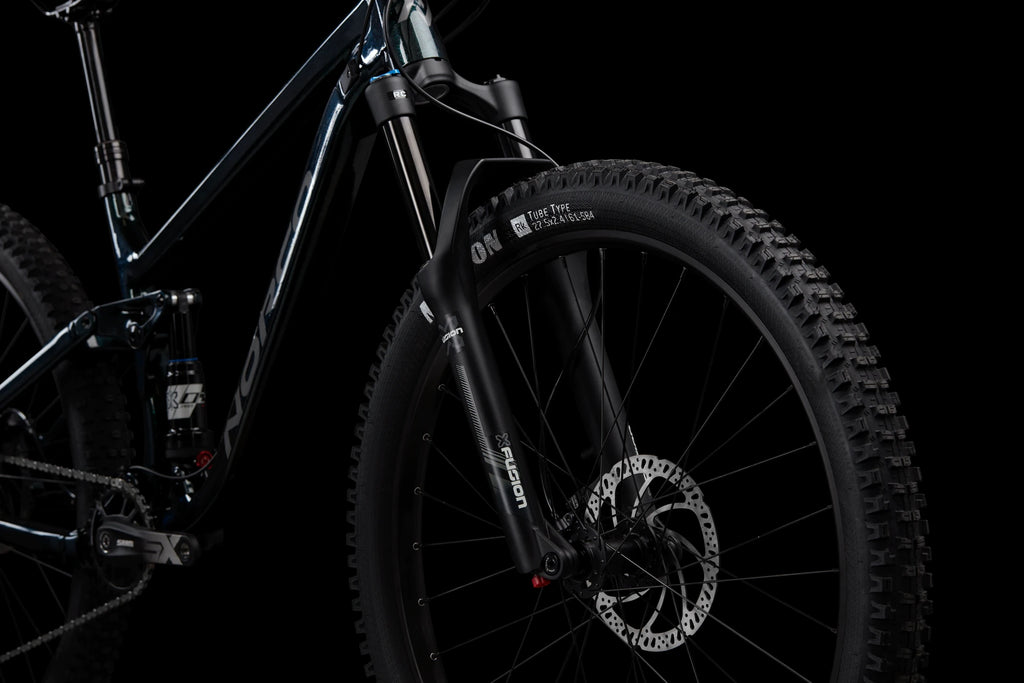

| Fork | X-Fusion RC32, Air, 130mm Travel, 46mm Offset |
| Rear Shock | X-Fusion 02 Pro R, 190x42.5mm Standard |

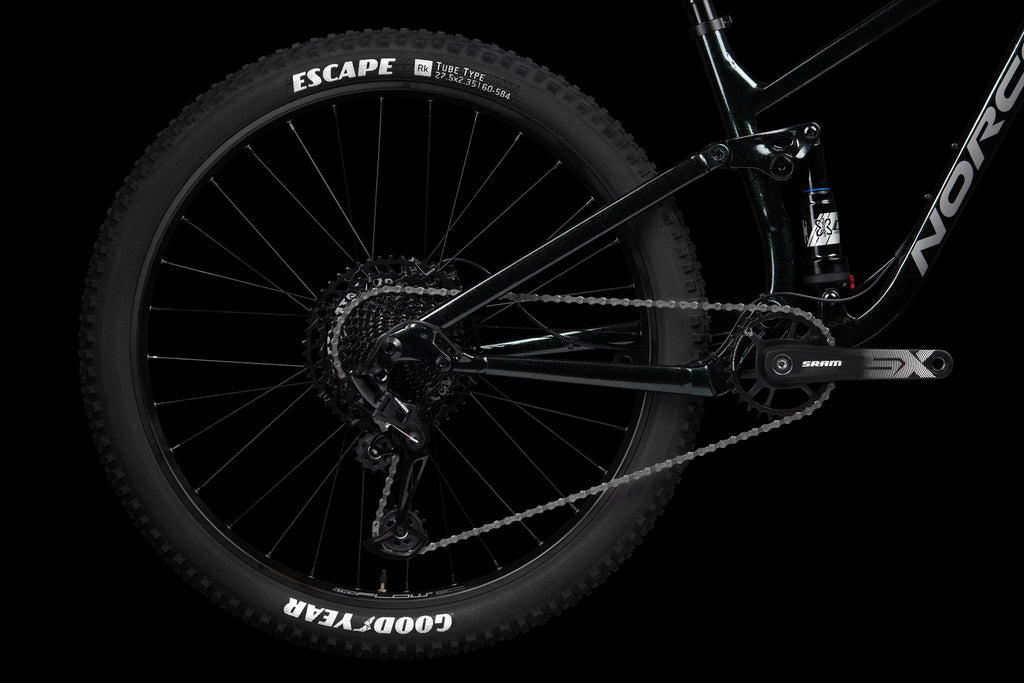

| Rear Shifter | SRAM SX Eagle |
| Rear Derailleur | SRAM SX Eagle |
| Front Shifter | - |
| Front Derailleur | - |
| Crankset | SRAM SX Eagle PS, 30T, 170mm |
| Bottom Bracket | SRAM Powerspline, BSA Threaded |
| Cassette | SRAM Eagle PG1210, 11-50T |
| Chain | SRAM SX Eagle |
| Front Brake | Tektro HD-M275 Hydraulic, Organic Pads |
| Front Brake Rotor | Tektro 180mm |
| Rear Brake | Tektro HD-M275 Hydraulic, Organic Pads |
| Rear Brake Rotor | Tektro 160mm |
| Brake Levers | Tektro HD-M275 |

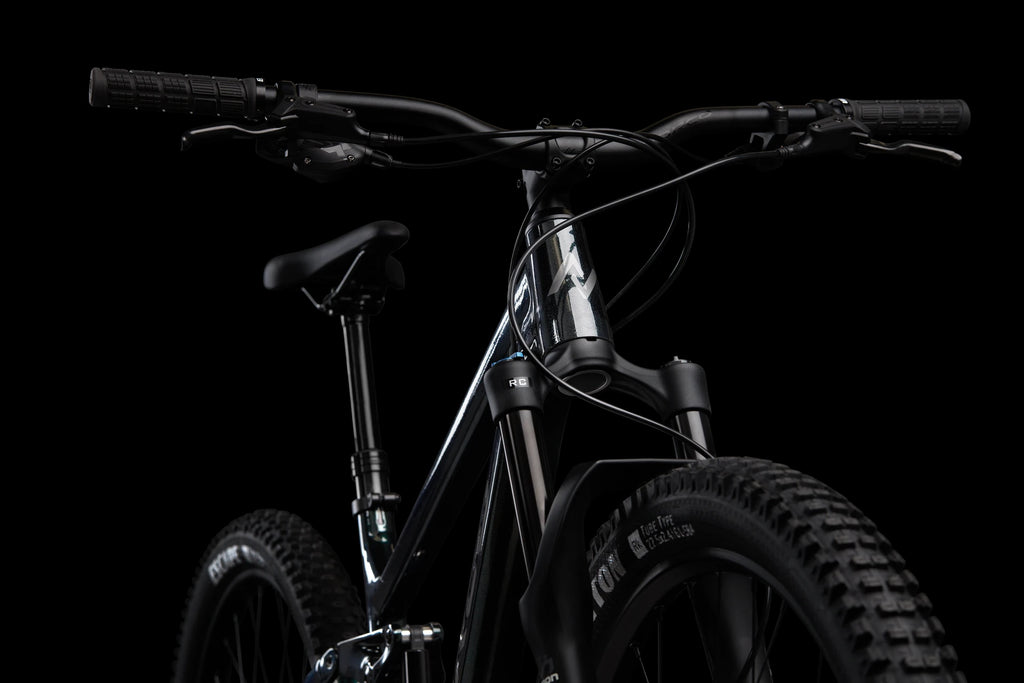

| Handlebar | 6061 Butted Alloy, 750mm, 20mm Rise |
| Stem | 6061 Alloy, 45mm Length, 35mm Clamp |
| Seatpost | Alloy Dropper, 31.6mm , 100mm Travel |
| Dropper Lever | - |
| Headset | Sealed Cartridge Bearing, Tapered |
| Saddle | Norco Trail |
| Grips | VP Lock-On |
| Pedals | VP Nylon Flat |
| Seatpost Clamp | Norco Alloy Nutted Clamp |
| Front Hub | Alloy Sealed Bearing, 15x110mm Boost, 6 Bolt |
| Rear Hub | Alloy Sealed Bearing, 12x148mm Boost, HG, 6 Bolt |
| Rims | Stan's Flow D, 32H, 27.5" |
| Front Tire | Goodyear Newton 2.4" |
| Rear Tire | Goodyear Escape, 2.35" |
| Spokes/Nipples | Stainless, Black |
