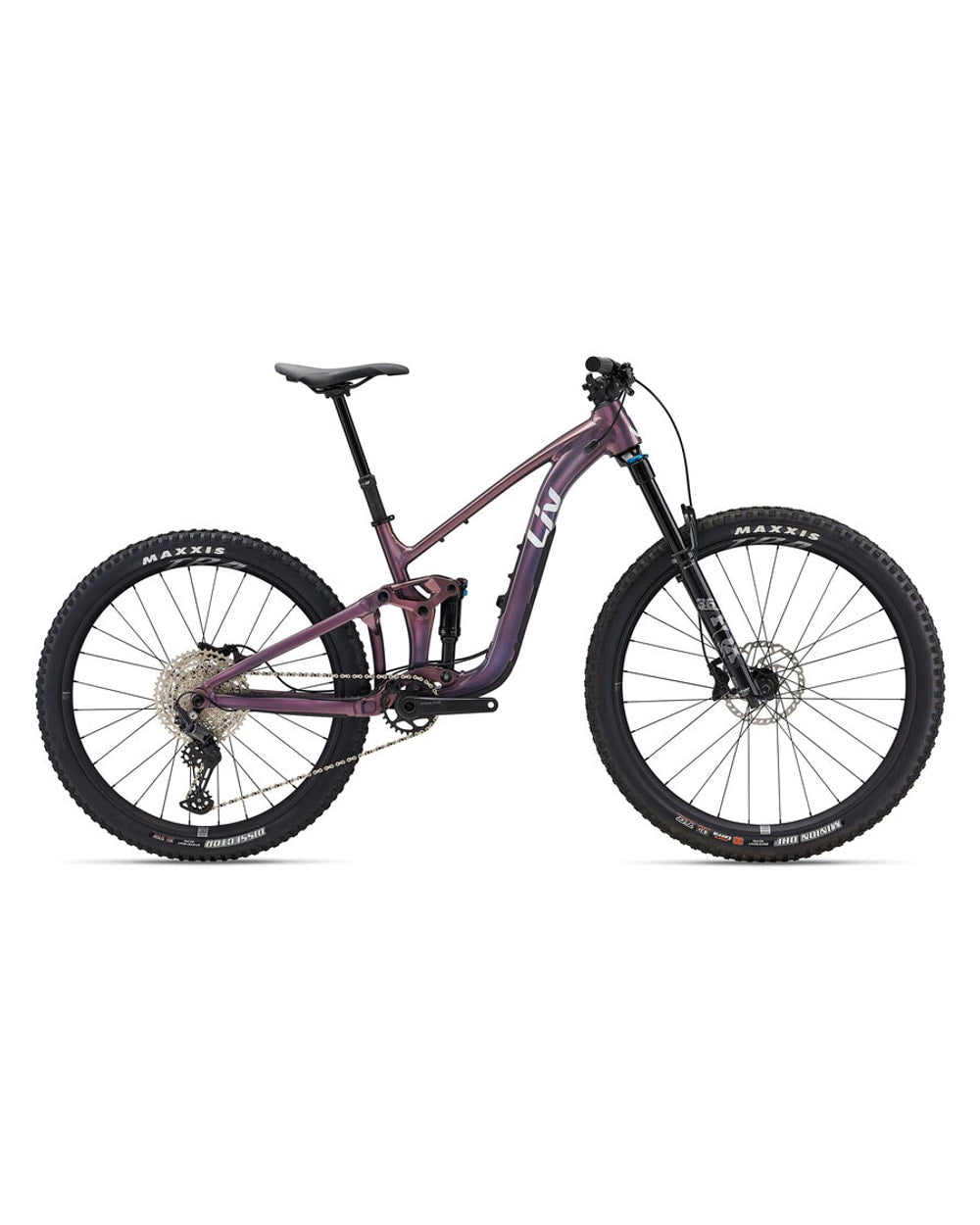

Liv Intrigue X 2 Desert Dawn

Sale
$3,119.99 $3,899.99

Please note: This is an oversized product and is excluded from our free shipping policy. Shipping charges will be added after the initial transaction. For a shipping quote prior to transaction please call 780.539.6262

"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer."

Key Performance Factors

Performance Mid Travel Trail

Constructed with lightweight and durable ALUXX SL-grade aluminum, the frame boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.

Adjustable Frame Geometry

For ultimate adjustability, the Intrigue X features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only

Best of Both Wheels

Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L

Highlights

ALUXX SL-GRADE ALUMINUM FRAMESET

State-of-the-art aluminum frameset material features best-in-class strength-to-weight ratios and unique welding technologies for a high-performance ride quality.

MAESTRO SUSPENSION TECHNOLOGY

Four strategically positioned pivot points and two linkages work together to create a single floating pivot point for the most active, efficient, and reliable suspension system.

ADVANCED FORGED COMPOSITE TECHNOLOGY

The upper rocker arm is crafted using Advanced Forged Composite Technology which offers increased stiffness, durability, and lighter weight.

OVERDRIVE

Our oversized fork steerer tube technology is specifically engineered to deliver precise front-end steering performance. With oversized headset bearings (1-1/2” lower and 1-1/8” upper) and tapered steerer tube, this system works together to provide the ideal balance of steering stiffness and responsiveness.

TRUNNION MOUNT

Integrated shock mount produces a lower leverage ratio for increased pedaling and braking efficiency.

ADJUSTABLE GEOMETRY

The flip chip – Maestro 3 allows you to quickly adjust the frame geometry to match your riding style and rear-wheel size choice. It includes two flip chips: a high/low chip and a mid-position chip. Transitioning from low to mid changes the seat tube and head tube angles by 0.4 degrees, and from mid to high by 0.3 degrees. The bottom bracket height adjusts by 5mm between the three positions.

ADJUSTABLE REACH

The flip chip – headset features two different “chips”, or headset cups, placing the headset/reach in either a -5mm (short), 0mm (mid), or +5mm (long) offset position. This allows you to customize the bike’s reach to suit your preference and individual fit.

MX CONFIGURATION

Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear and can accommodate a 27.5-inch wheel in the rear.

GIANT TRA WHEELSYSTEM

This tubeless wheelsystem features lightweight alloy rims with Wide Guard technology, providing a 30mm inner rim width and a sturdy 5mm sidewall for enhanced durability and puncture resistance, while supporting lower tire pressure for improved grip and control on rough terrain. Maximum tire size is 2.5 inches.

BOOST HUB SPACING WITH UDH COMPATIBILITY

Boost 15x110 [F], 12x148 [R] hub spacing, combined with Universal Derailleur Hanger (UDH) compatibility, enhances stiffness, trail handling, tire clearance, and drivetrain durability.

FRAME MOUNTS

Underneath the top tube, discover a set of frame mounts to secure a compact gear bag — perfect for must-have tools or snacks.

    SPECIFICATIONS

    Sizes XS, S, M, L
    Colour Desert Dawn
    Frame Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage
    Fork Fox 36 Float Rhythm, 150mm, GRIP damper, 44mm offset, 15x110mm Kabolt X, custom tuned for Liv
    Shock Fox Float Performance, 185/52.5, custom tuned for Liv
    Handlebar Giant Contact TR35, 20mm rise, 35mm
    Grips Liv Tactal single lock-on
    Stem Giant Contact SL 35
    Seatpost Giant Contact Switch AT adjustable dropper, remote
    XS/S: 140-170mm travel / 30.9 x 470mm
    M/L: 170-200mm travel / 30.9 x 530mm
    Saddle Liv Sylvia
    Pedals N/A
    Shifters Shimano Deore, 1x12
    Front Der. N/A
    Rear Der. Shimano Deore RD-M6100
    Brakes Shimano BR-MT420, hydraulic
    Shimano RT-66, [F] 203mm, [R] 180mm
    Brake Levers Shimano Deore BL-MT401
    Cassette Shimano Deore, 12-speed, 10x51
    Chain KMC X12
    Crankset Shimano M512, 30t, 55mm chainline
    Bottom Bracket Praxis, press fit
    Rims Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
    Hubs [F] Giant MTB alloy, 6-bolt, sealed
    [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, sealed
    Spokes Sapim Race j-bend
    Tires [F] Maxxis Minion DHF 29x2.5WT, 3C MaxxTerra, EXO, TR, tubeless
    XS/S: [R] Maxxis Dissector 27.5x2.4WT, 3C MaxxTerra, EXO, TR, tubeless
    M/L: [R] Maxxis Dissector 29x2.4WT, 3C MaxxTerra, EXO, TR, tubeless
    Extras 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 34t max chainring size
