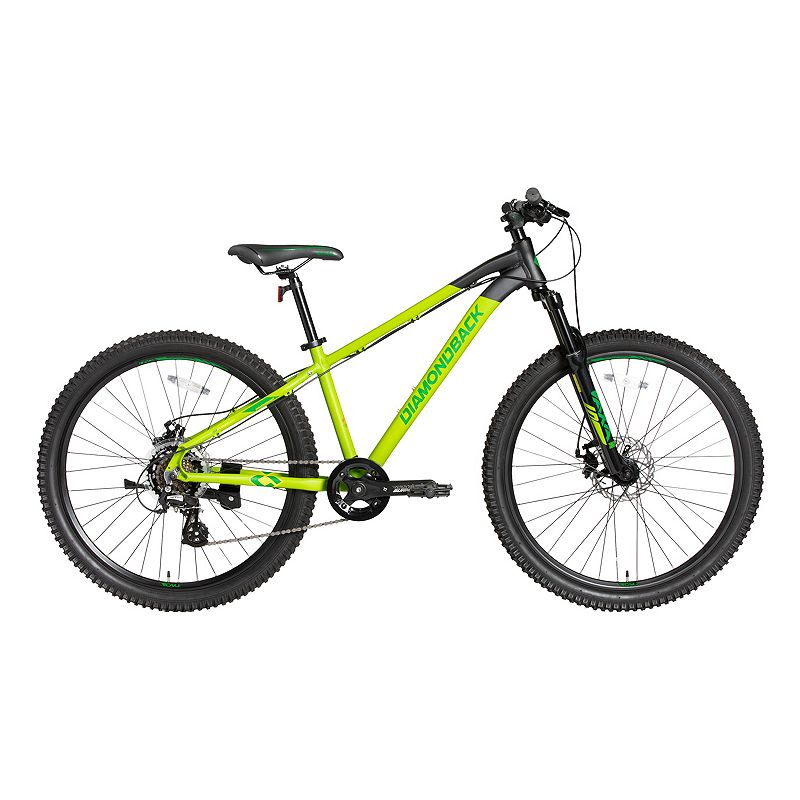

Pines Youth Hardtail Mountain Bike - 26"


Please note: This is an oversized product and is excluded from our free shipping policy. Shipping charges will be added at check-out. Thank you.

"These bikes are shipped unassembled. Bikes should be assembled by an authorized bicycle retailer"

The Diamondback Pines is designed specifically as a “tweener” bike for those rider’s who won’t quite fit a 27.5” wheeled mountain bike. The lightweight 26” hardtail design, quality Shimano components and 7 speed drivetrain provides the young, or smaller rider with a versatile bike that is great for all around riding on a variety of trails, and the Shimano mega-range freewheel will help them get up any hills they encounter on their journey.

  • Lightweight 6061 T6 aluminum frame with Diamondback's formed tubing features optimised wall thickness for a balance of strength, weight, and stiffness that translates to a responsive, and reliable ride

  • Vaxa 100mm travel front suspension fork with adjustable preload soaks up the bumps and offers smooth and confident control over various terrain

  • 26" x 2.3" aggressive MTB tires for traction that will bite into any trail conditions

  • JAK-8 mechanical disc brakes make for sure stopping power in both wet and dry conditions

  • Shimano 7 speed M315 Rapid Fire Plus will have you shifting gears with ease while you're out and about over various terrain.

  • Durable CAVU double wall aluminum wheelset wrapped with meaty 26" x 2.3" tires for excellent performance on various off-road trails

  • CAVU Comfort-Mountain saddle is equipped with a quick release seat post clamp so it's always easy to find the perfect saddle height.

  • CAVU Lock on grips for a confident and reliable connection point in wet or dry conditions


  • Frame: 6061 T6 heat treated aluminum frame
  • Rear Shock: N/A
  • Fork: Vaxa 100mm travel, with pre-load adjust
  • Cable Routing: External guided w/ full length housing
  • Rear Derailleur: Shimano Altus M310, 7 speed
  • Front Derailleur: N/A
  • Shifters: Shimano Rapid Fire M315 (RH), 7 speed
  • Cog Set: Shimano MF-TZ500-7, 14-34T 7 speed freewheel
  • Chain: KMC Z7
  • Crankset: ProWheel Alloy, 9/16 x 165mm, w/ bash ring
  • Bottom Bracket: Gineyea BB73-68, square taper, sealed cartridge
  • Front Brake: JAK 8 Mechanical Disc, 160mm rotor
  • Rear Brake: JAK 8 Mechanical Disc, 160mm rotor
  • Brake Levers: JAK Alloy
  • Headset: Neco H-148, 1-1/8" threadless, Semi-integrated
  • Seat post: CAVU 27.2mm x 300mm Alloy
  • Handlebar: CAVU, 31.8mm*680mm
  • Stem: CAVU Alloy, 31.8mm, 50mm
  • Saddle: CAVU MTB
  • Pedals: 9/16" Resin body, flats
  • Grips: CAVU Lock-on w/ closed end
  • Rims: CAVU Aluminum double wall, 36 hole, 26"
  • Front Tire: 26" x 2.3" for all-terrain
  • Rear Tire: 26" x 2.3" for all-terrain
  • Tubeless Ready: No
  • Front Hub: Alloy w/ quick release axle
  • Rear Hub: Alloy w/ quick release axle
