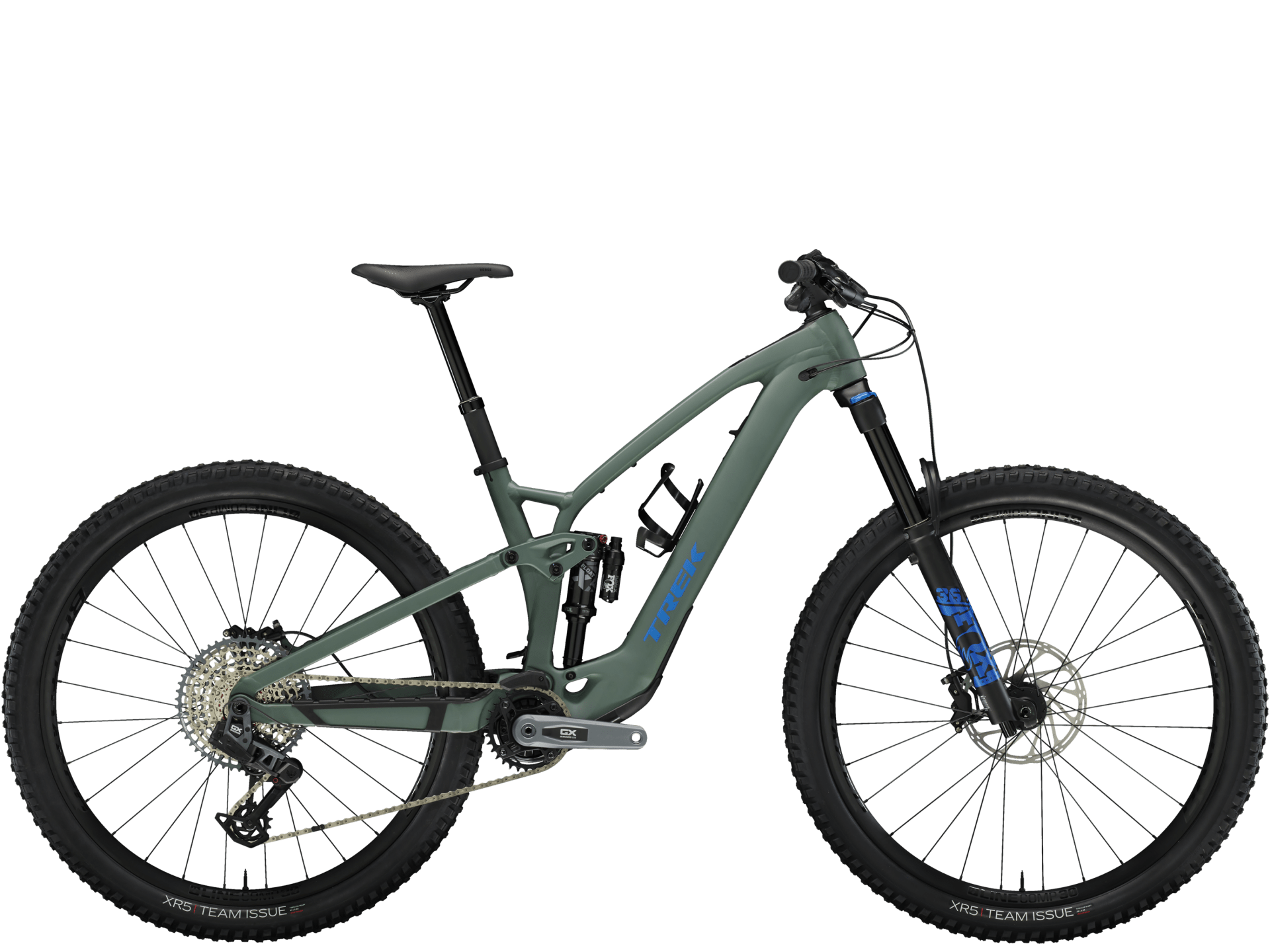

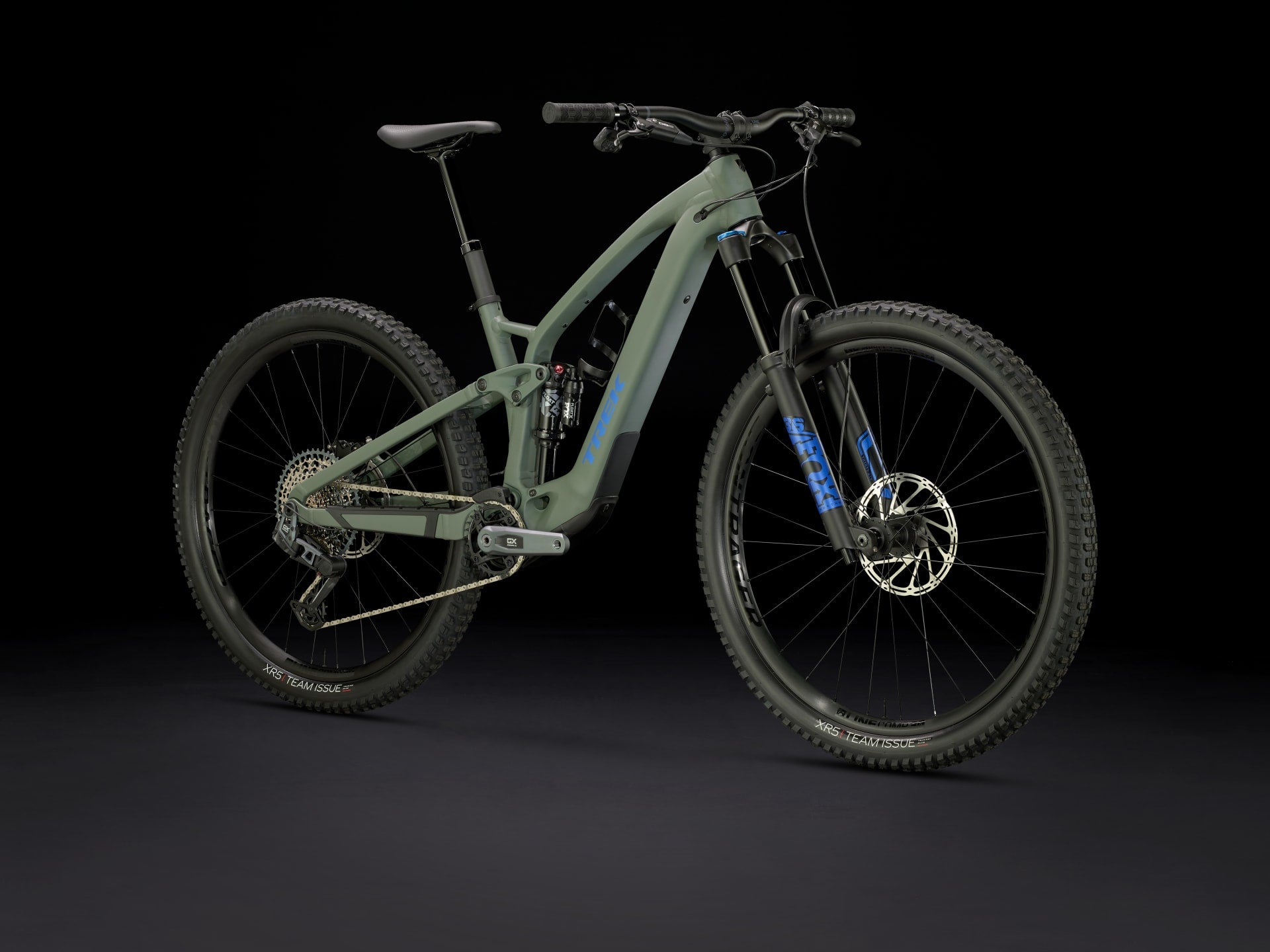

Trek Fuel EXe 8 GX AXS T-Type

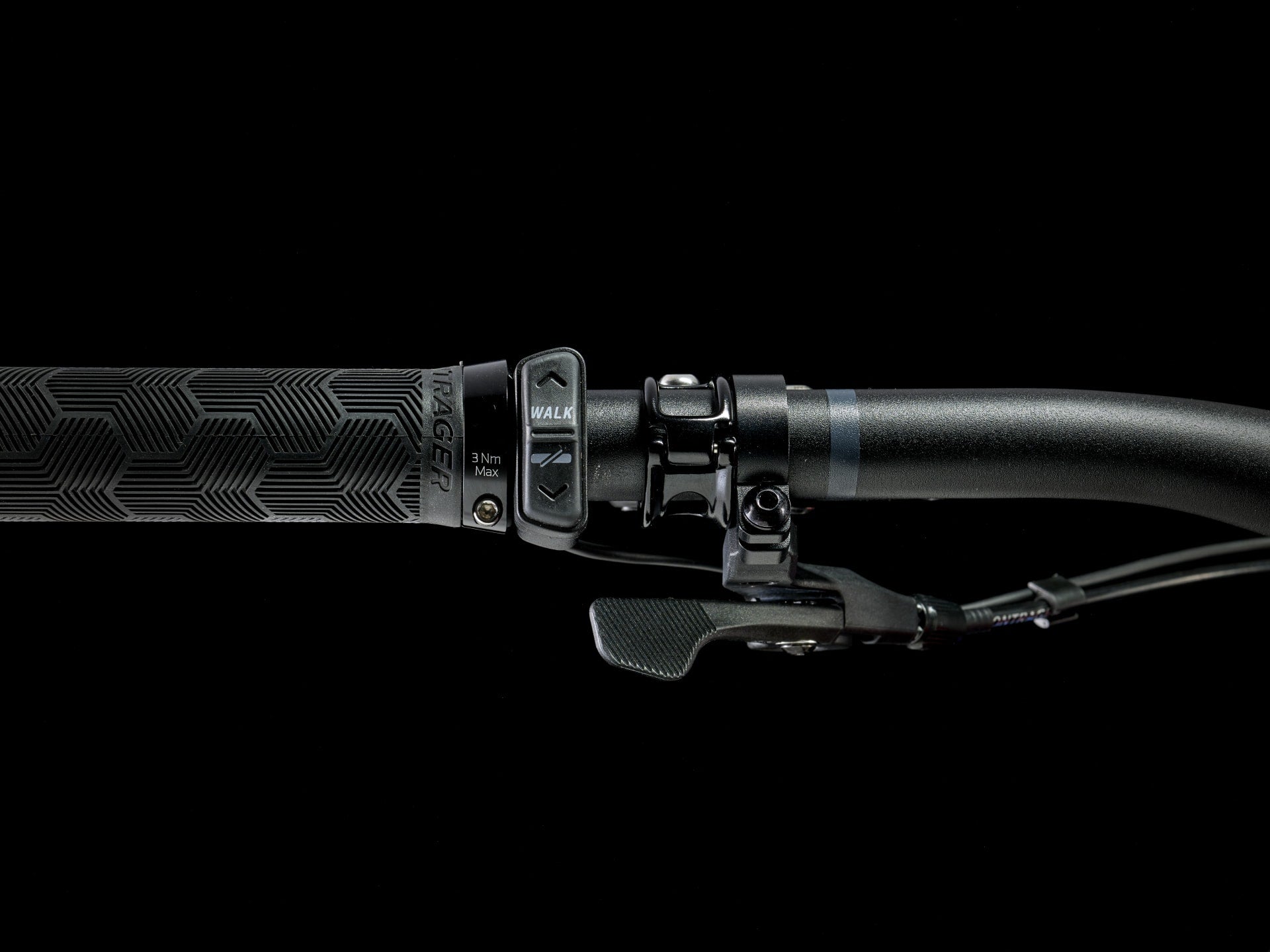

Fuel EXe 8 is a trail-ready aluminum electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels, and SRAM's 12-speed wireless GX AXS transmission.

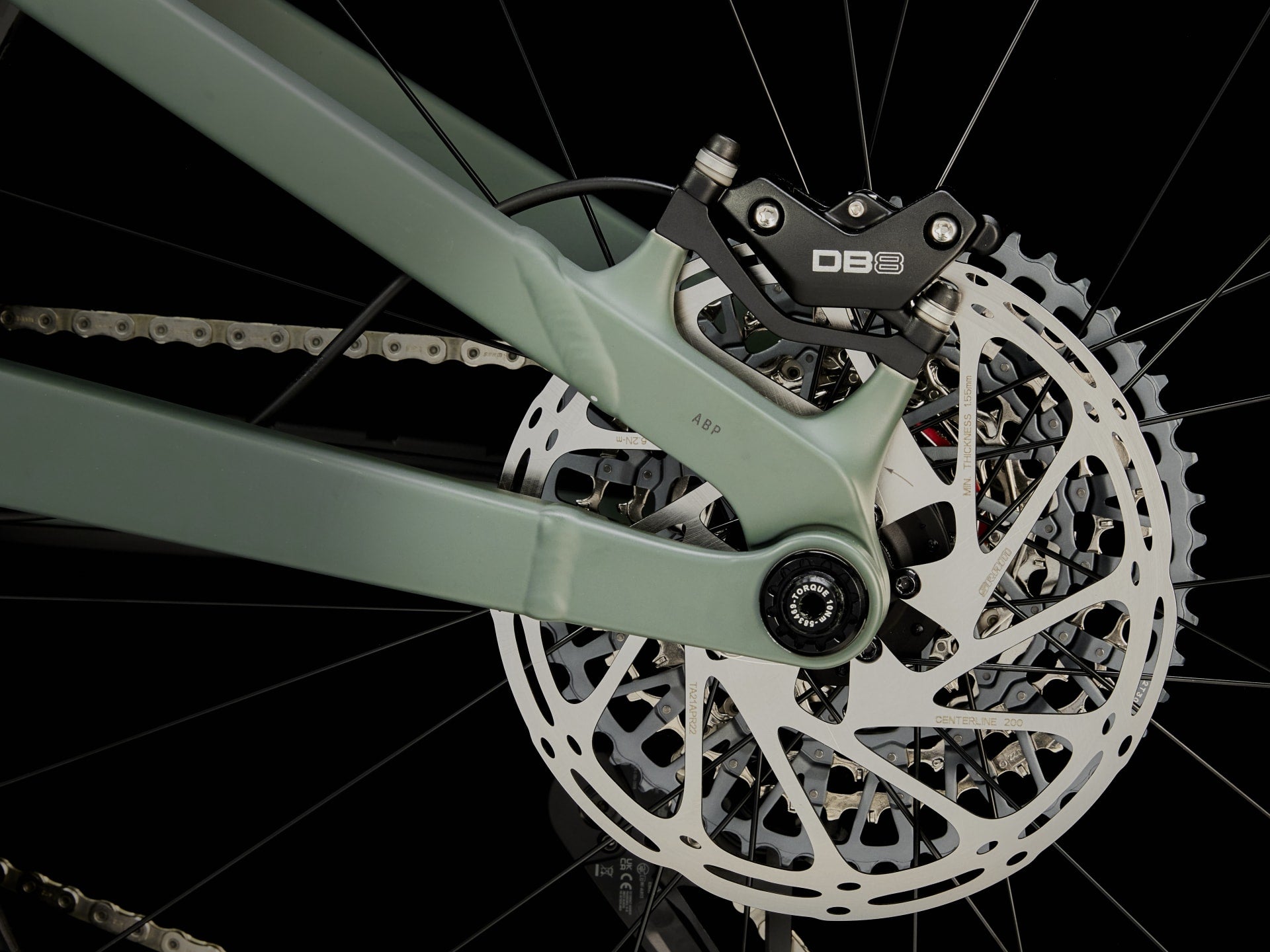

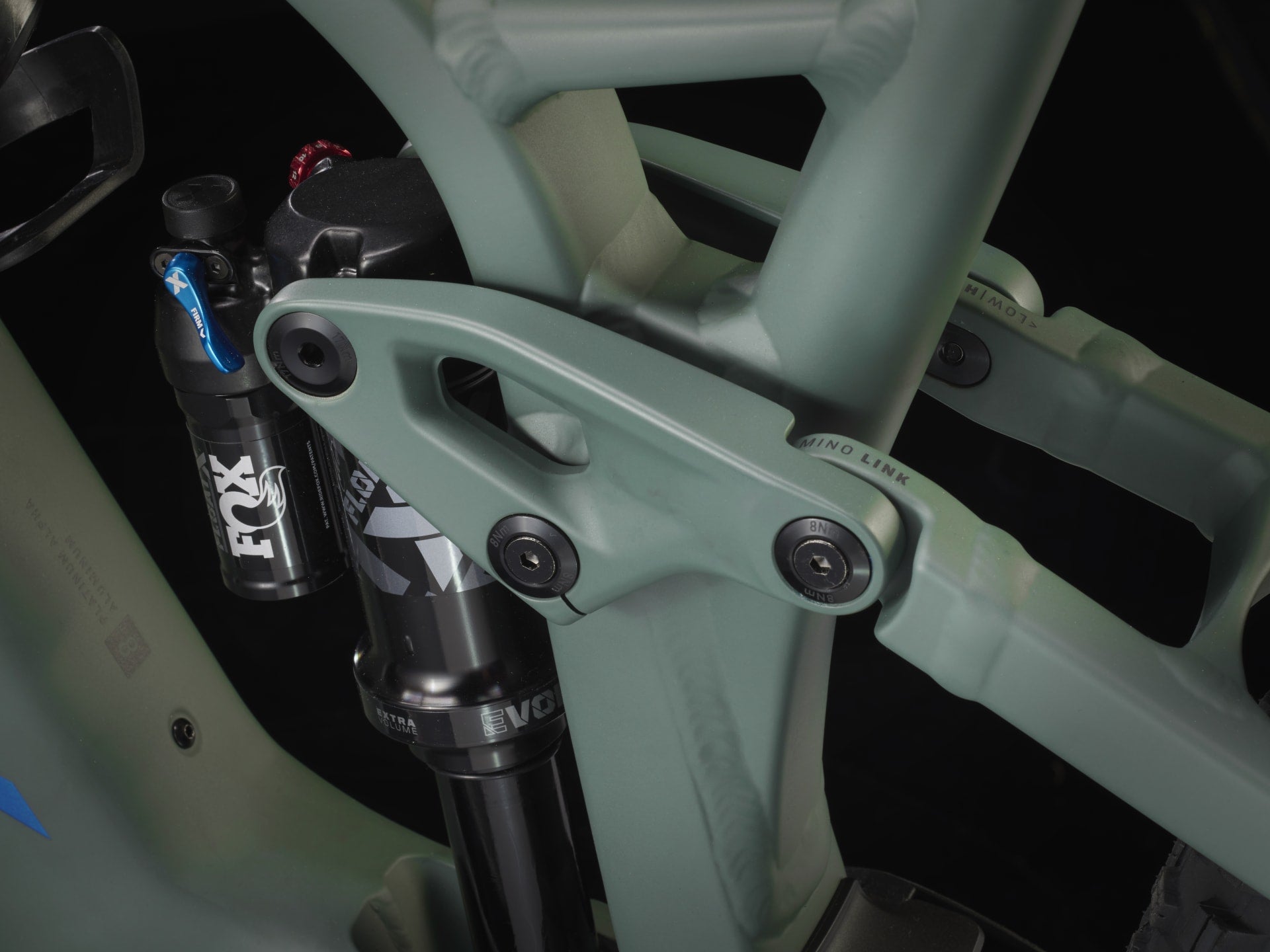

Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

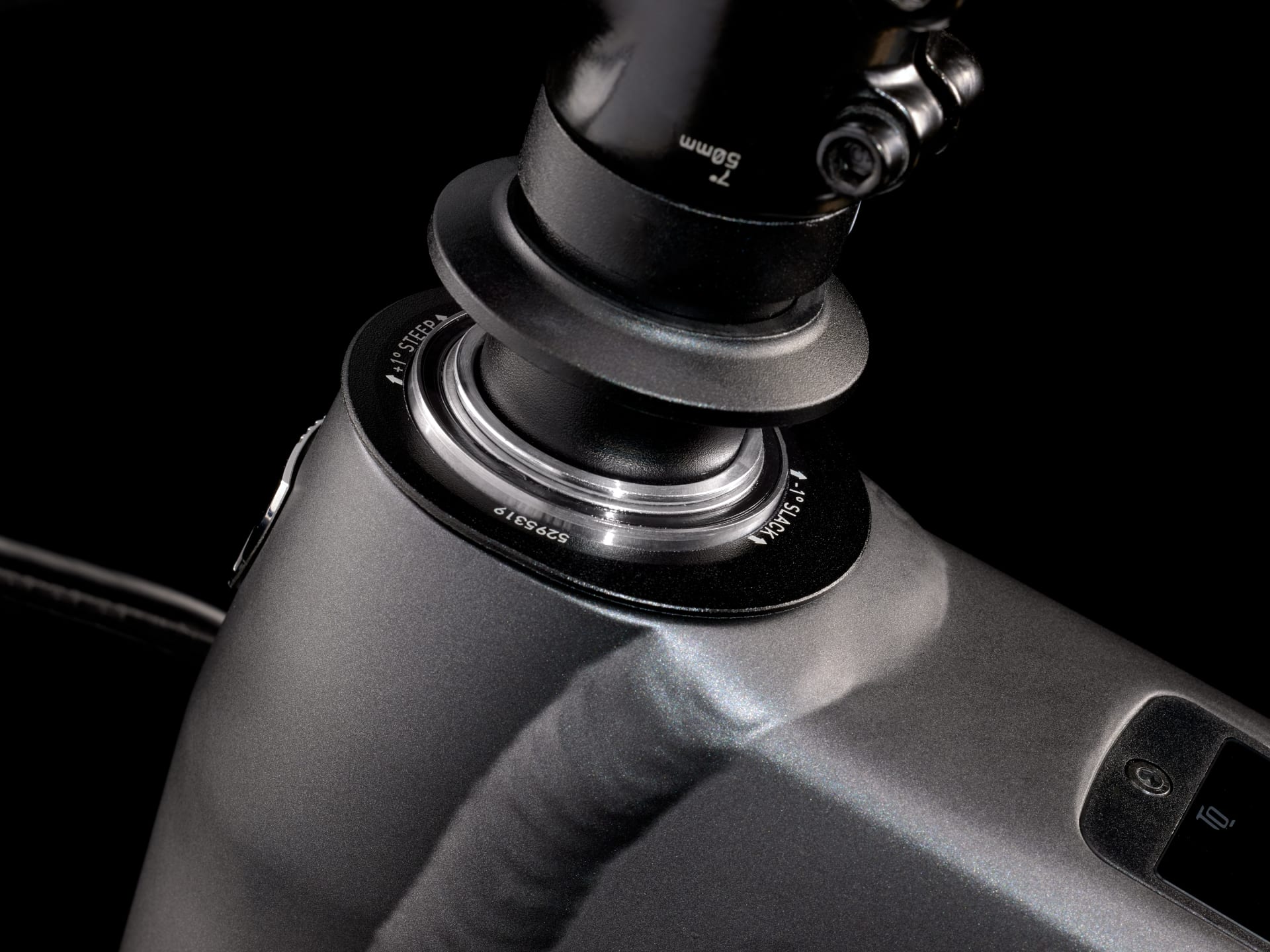

Slack or steep, the choice is yours
Install angle adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking — all without impacting your bottom bracket height.

Transition to transmission
SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner looking, it's also more precise under load, and easier to set up.

Compliant with leading safety regulations
The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.

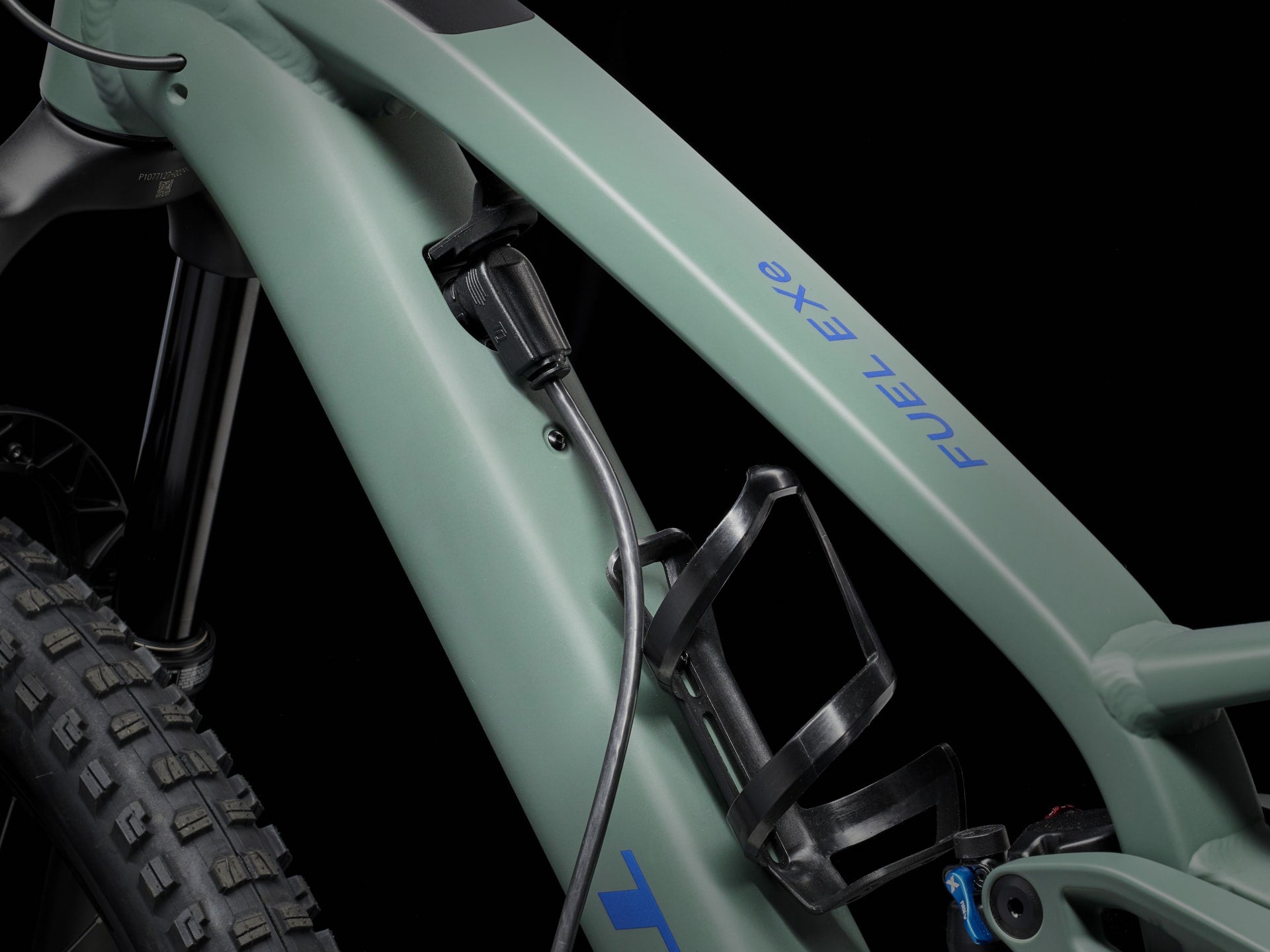

• Frame: Alpha Platinum Aluminum with 140mm travel, removable battery, internal routing, ABP, Mino Link, UDH, Boost148

• Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, 150mm travel

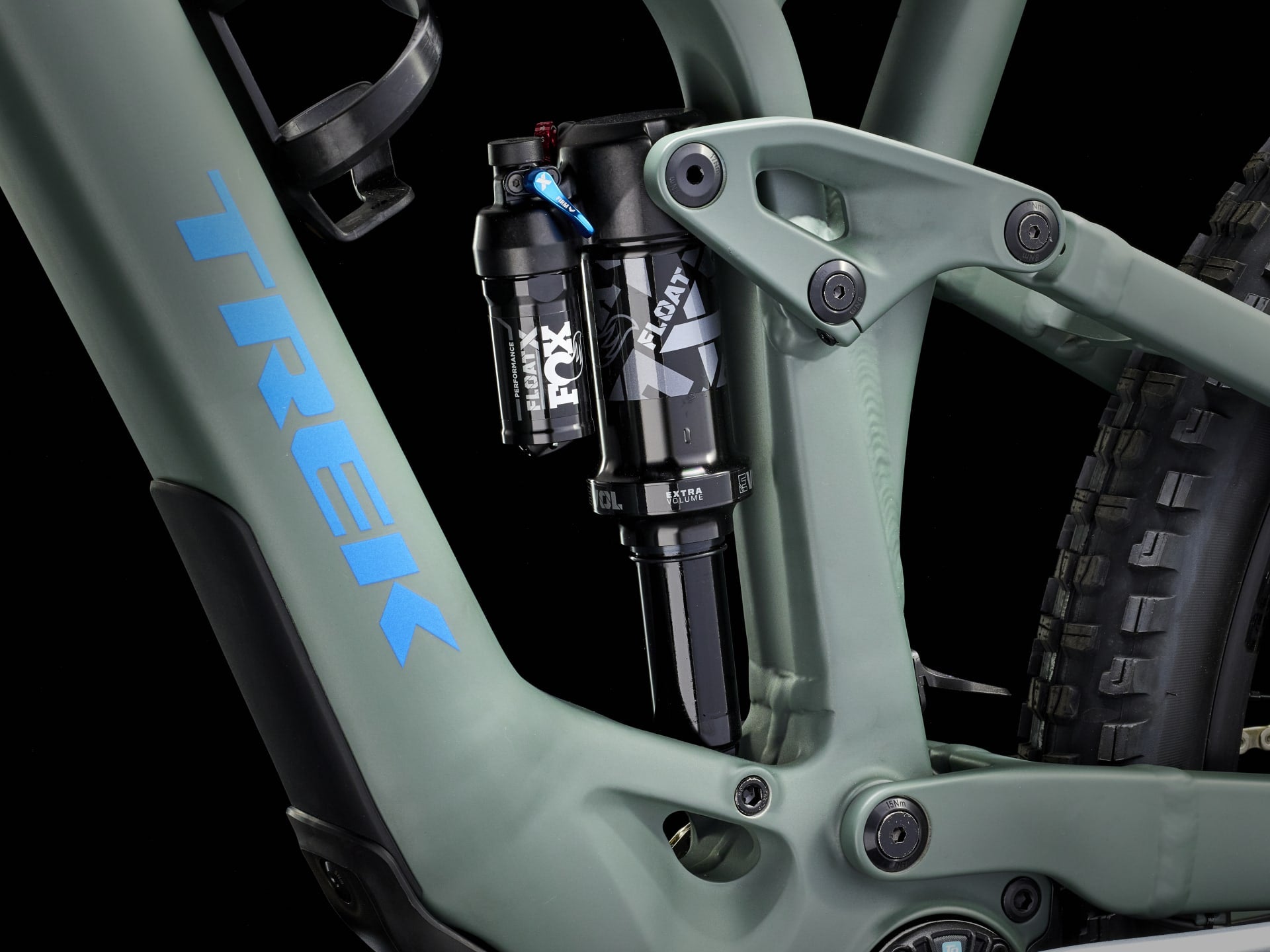

• Rear Shock: Fox Performance Float X, 2-position damper (205x60mm)

• Front Wheel: Bontrager Line Comp 30, Tubeless Ready, Boost110, 29"

• Rear Wheel: Bontrager Line Comp 30, Rapid Drive 108, Tubeless Ready, Boost148, 29"

• Tires: Bontrager XR5 Team Issue, 29 x 2.50" (Tubeless Ready)

• Tubeless Setup: Includes Bontrager TLR sealant & rim strips

• Max Tire Clearance: Up to 29 x 2.50"

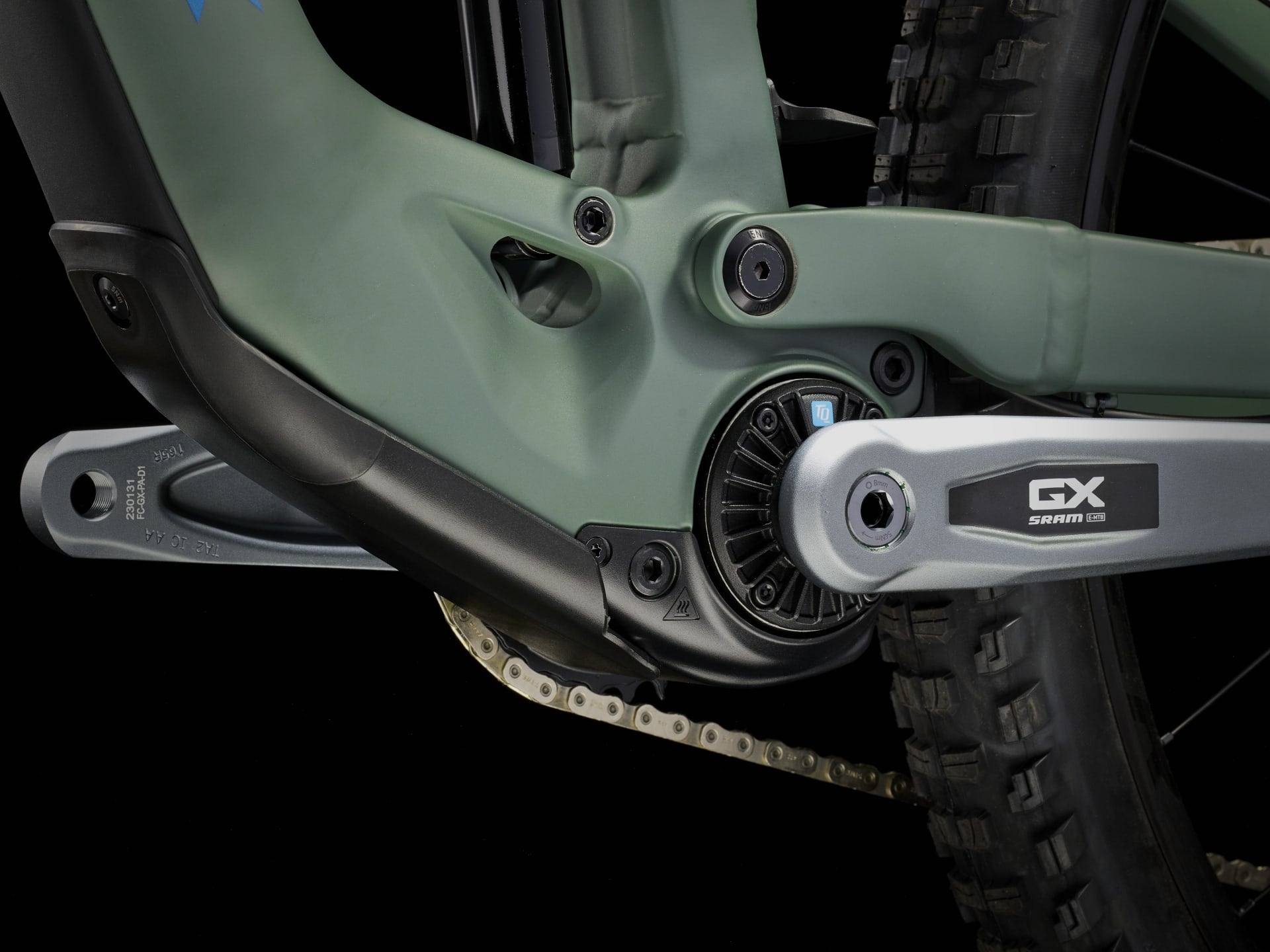

• Motor: TQ-HPR50 (250W, 50Nm torque, 300W peak)

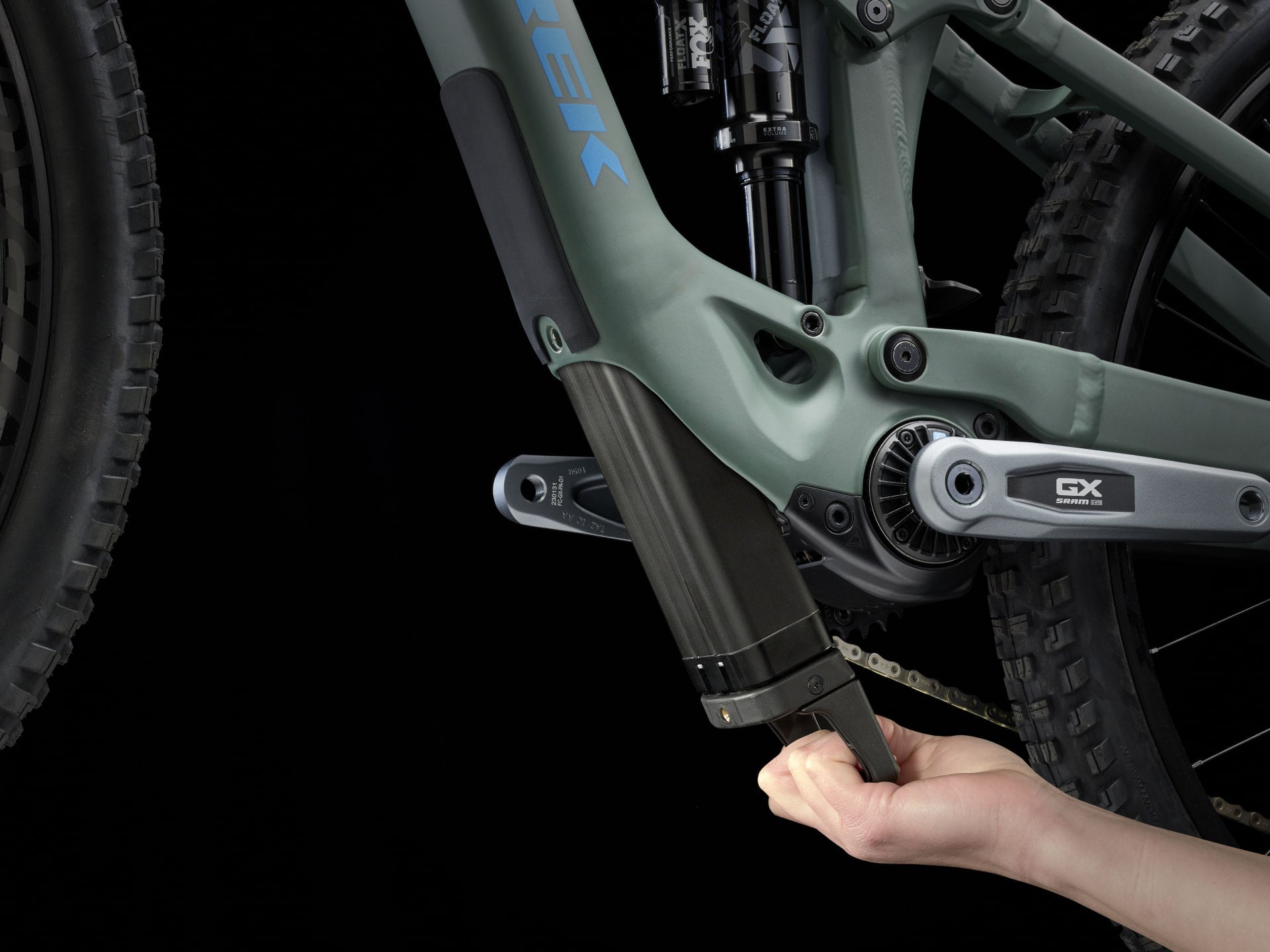

• Battery: TQ 360Wh integrated battery

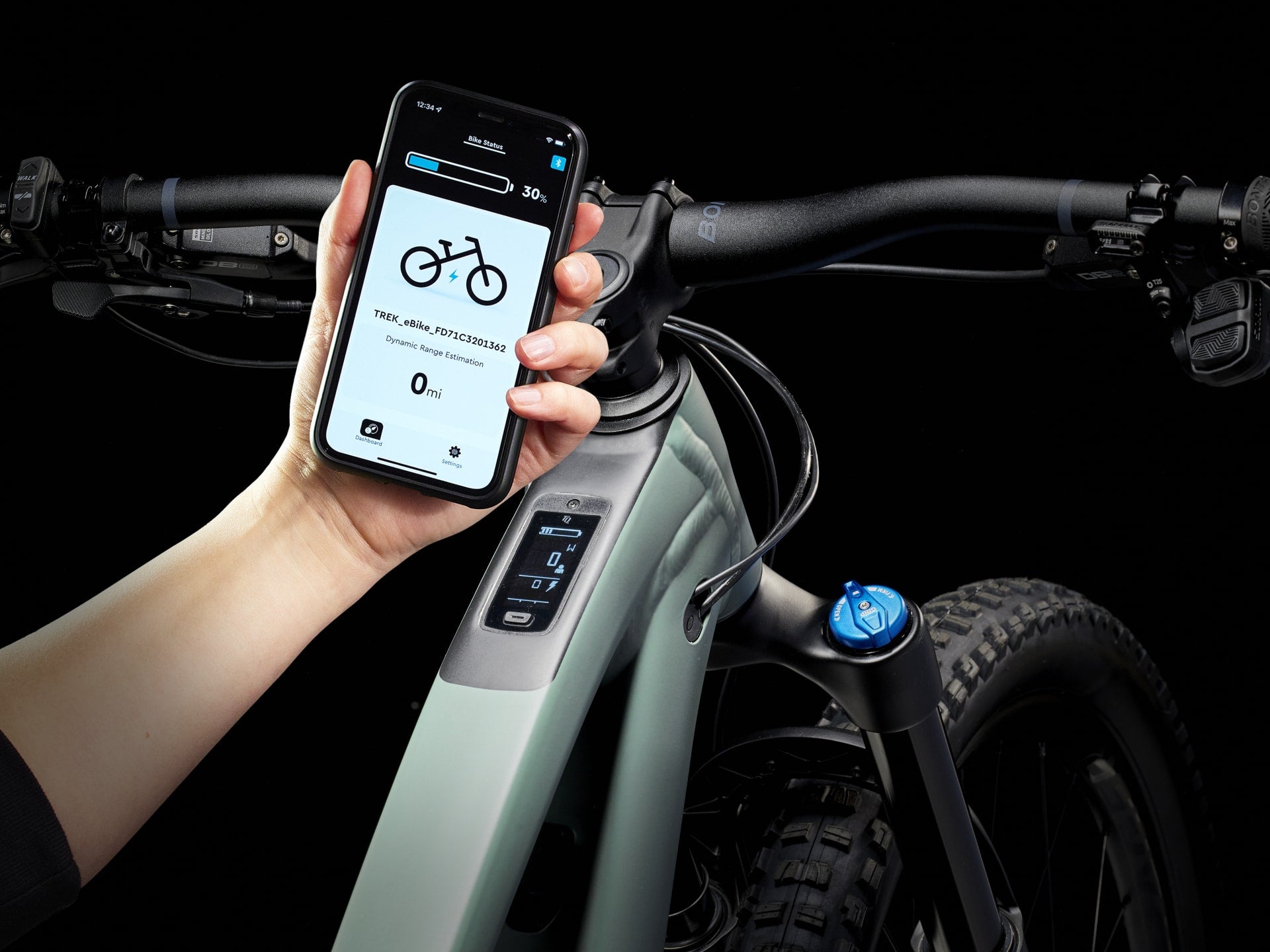

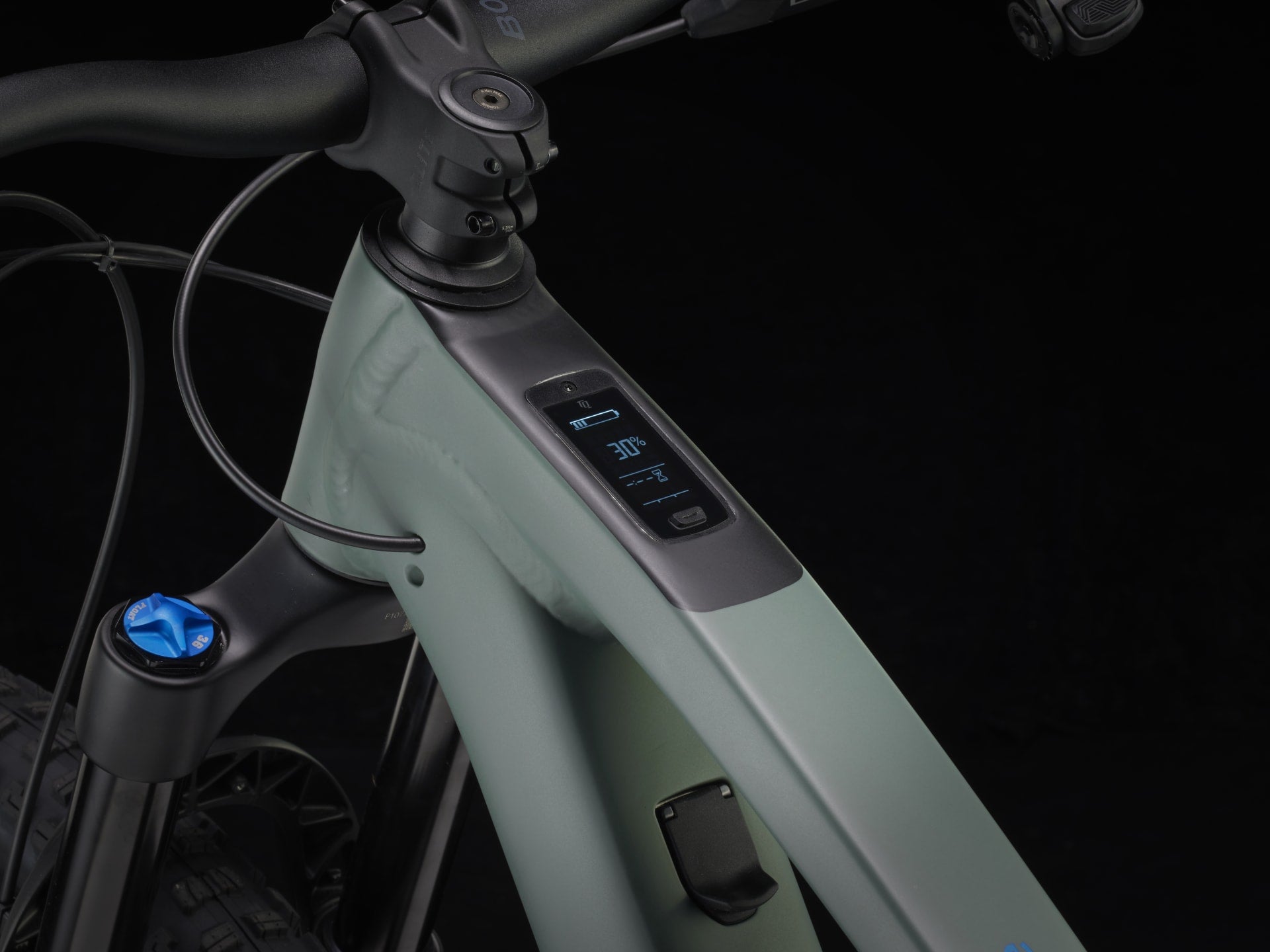

• Display: TQ LED display with Bluetooth & ANT+

• Charger: TQ 4A fast charger

• Shifter: SRAM AXS POD (wireless electronic)

• Rear Derailleur: SRAM GX Eagle AXS T-Type

• Crankset: SRAM GX, 165mm

• Chainring: SRAM T-Type 32T alloy

• Cassette: SRAM Eagle XS-1275, 10-52T, 12-speed

• Chain: SRAM GX Eagle T-Type, 12-speed

• Brakes: SRAM DB8 4-piston hydraulic disc

• Rotors: SRAM CenterLine, 200mm

• Handlebar: Bontrager Line alloy, 780mm width, 27.5mm rise

• Stem: Bontrager Elite, 45mm length

• Grips: Bontrager XR Trail Elite lock-on

• Saddle: Bontrager Arvada, 138mm

• Dropper Post:

  • S: 100mm travel

  • M: 150mm travel

  • L/XL: 170mm travel

• Weight: 20.43 kg / 45.05 lbs (size M, tubeless setup)

• Max Weight Limit: 300 lbs / 136 kg (rider + bike + cargo)
